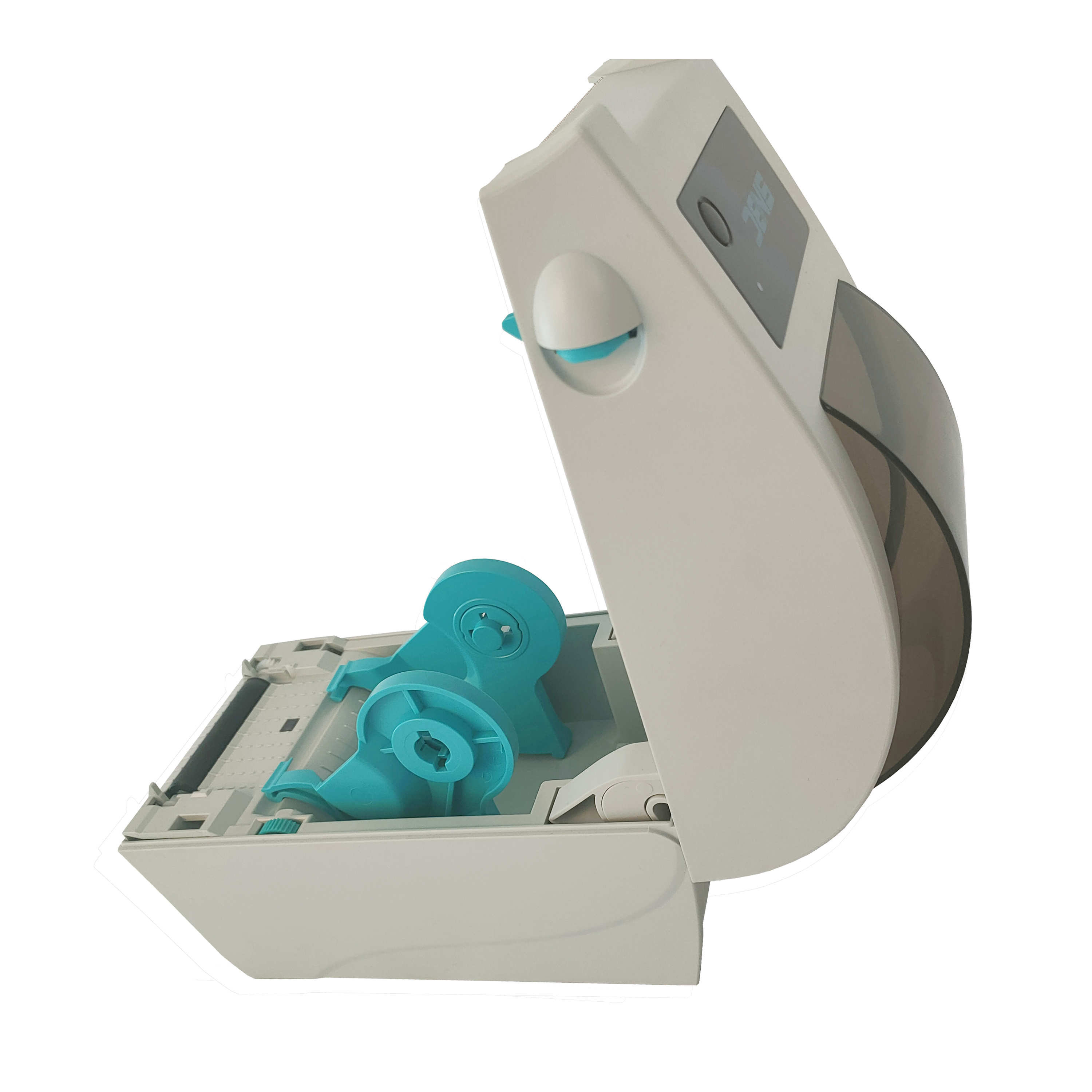

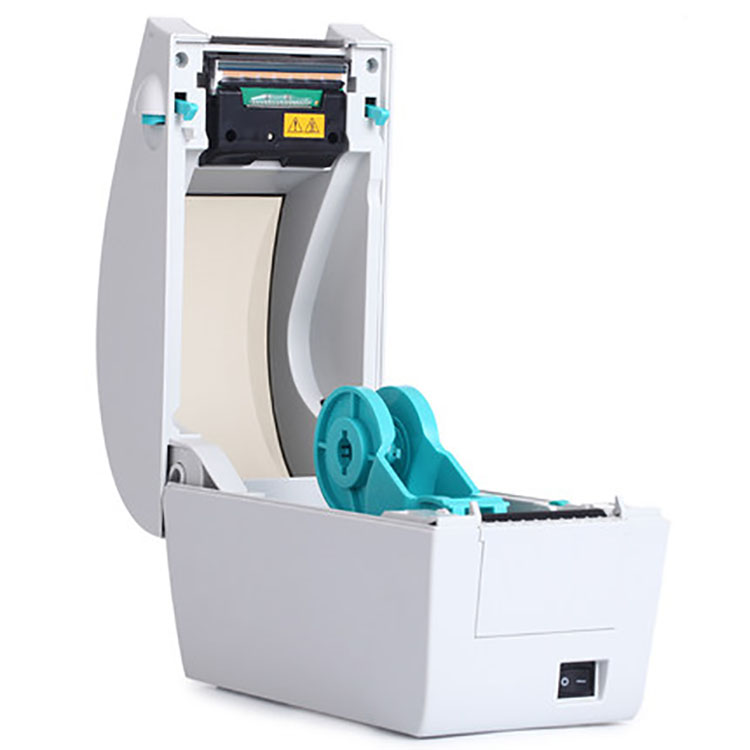

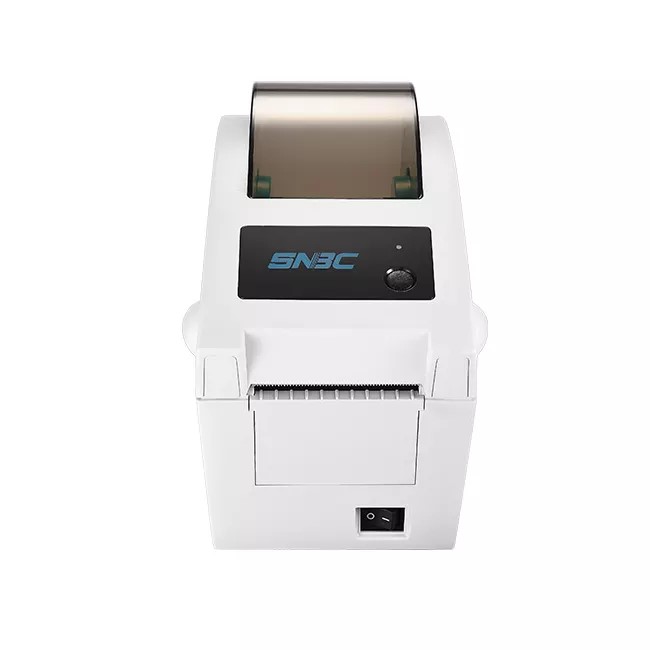

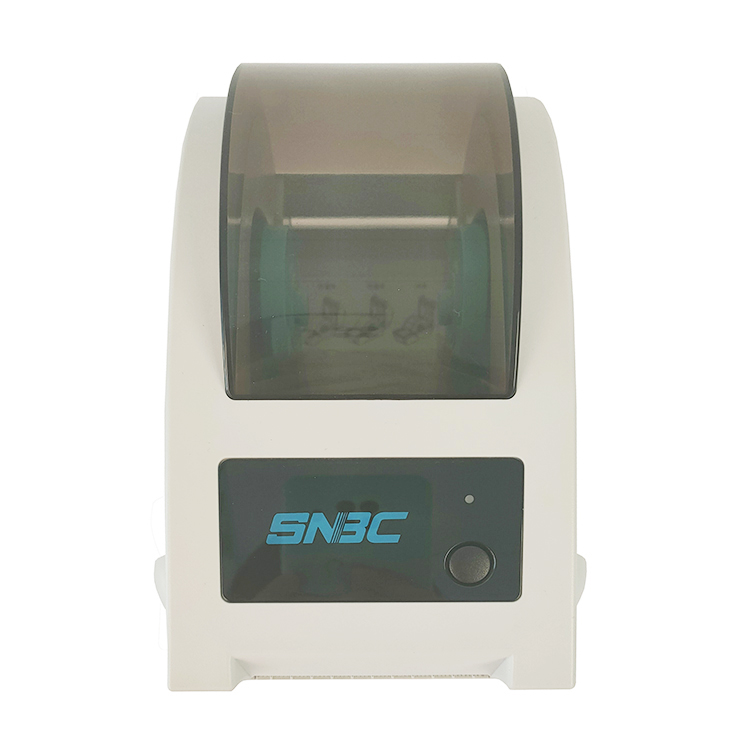

| Item | BTP-L520 | |
|---|---|---|
| Print method | Direct thermal | |
| Resolution | 203 DPI | |
| Print width | Max.56mm | |
| Print speed | Max.152mm/s | |
| Memory | SDRAM:64MB, FLASH:4MB(standard) /8MB(optional) | |
| Sensors | Top cover position, TPH overheating protection, Mark sensor, Paper existence | |
| Drivers | Windows drivers(Win 2000/ XP /2003/ Win7/ Win 8) Linux, Mac | |
| Button LED, LCD | 1 button, 1 LED, 1 LCD (Optional) | |
| Interface | Optional: Serial, Parallel, USB, Ethernet, WLAN(Wi-Fi) | |
| Barcodes Fonts Graphics | 1D Barcode | Code 3 of 9, UPCA, UPCE, Interleaved 2 of 5, code 128, EAN13, EAN8, HBIC (39 code with checkout), Codabar, industry CODE25, storage and transportation Code, UPC2, UPC5, Code 93, Postnet 25 (China), UCC/EAN, matrix 25, POSTNET code, etc. |
| 2D Barcode | PDF417, MAXICODE, QR code etc. | |
| Fonts | Normal used single-byte fonts: FONT0~FONT8, 6 kinds of ASD smooth fonts, 8 kinds of Courier fonts; User-defined fonts: User can define font and download it to FLASH or SDRAM | |
| Character modification | Rotate (0°,90°,180°,270°), enlarge (1-8x) | |
| Graphics printing | Binary non-format bitmap, HEX, PCX, BMP and IMG bitmap can be downloaded to FLASH or RAM | |
| Paper | Paper type | Continuous paper, Marked paper, Label paper |
| Paper width | Max.62mm | |
| Paper out | Tear-off, peel-off | |
| Paper roll ID | 12.7mm/25.4mm | |
| Paper roll OD | Max.127mm | |
| Power supply | Input | 100~240V AC,50~60Hz |
| Output | 24V DC, 2.5A | |
| Environment | Operation condition | 5~45°C,20~90%RH(40°C) |
| Storage condition | -40~60°C,20~93% RH(40°C) | |
| Physics Spec. | Dimensions | 221(L)×125(W)×169(H)mm |
| Weight | Approx.1.1Kg | |
| Standards | Standard | CCC, CE, FCC |
