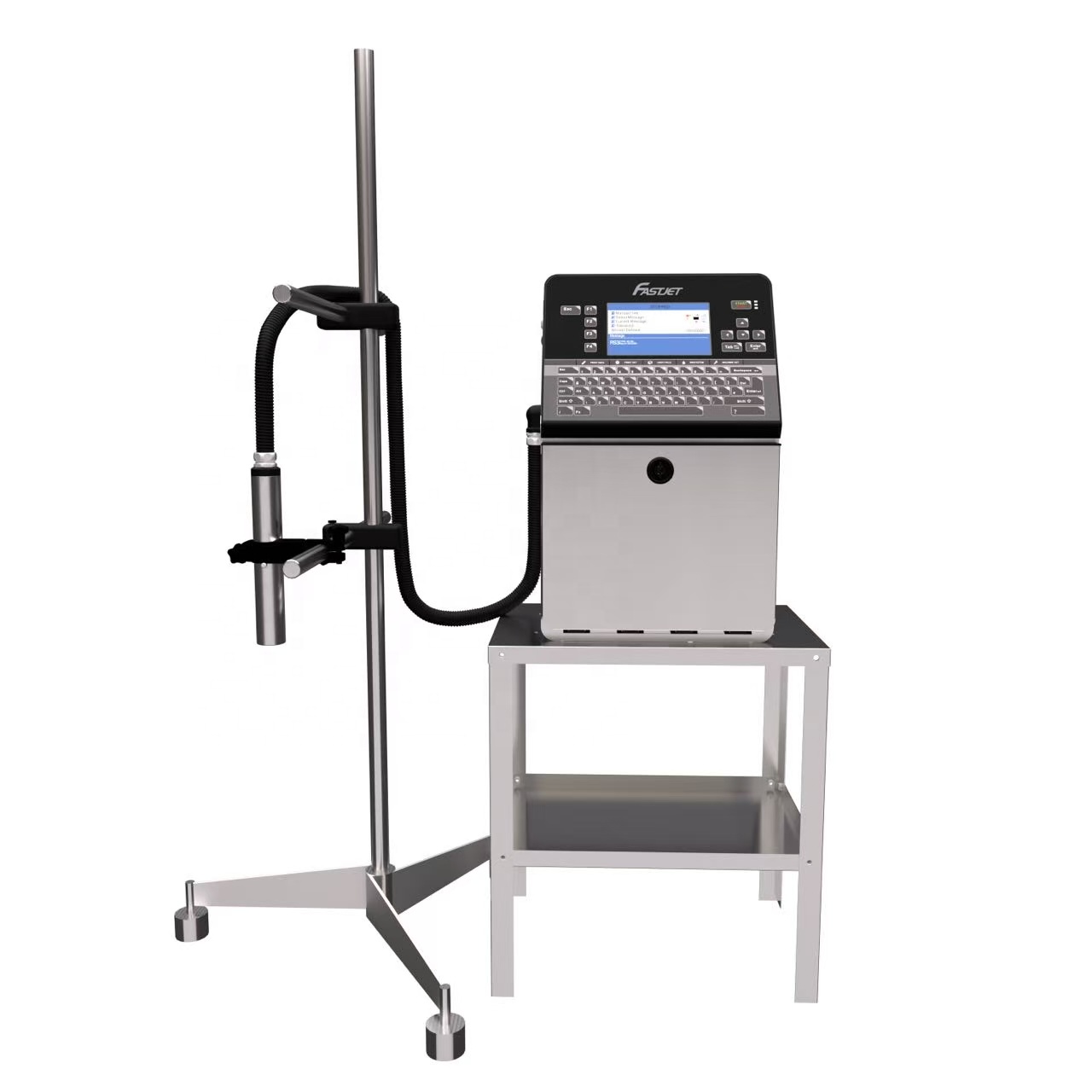

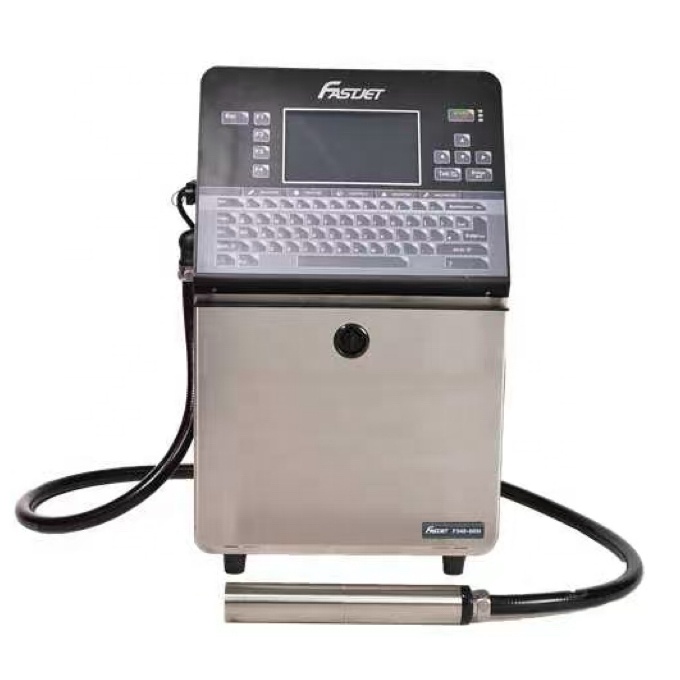

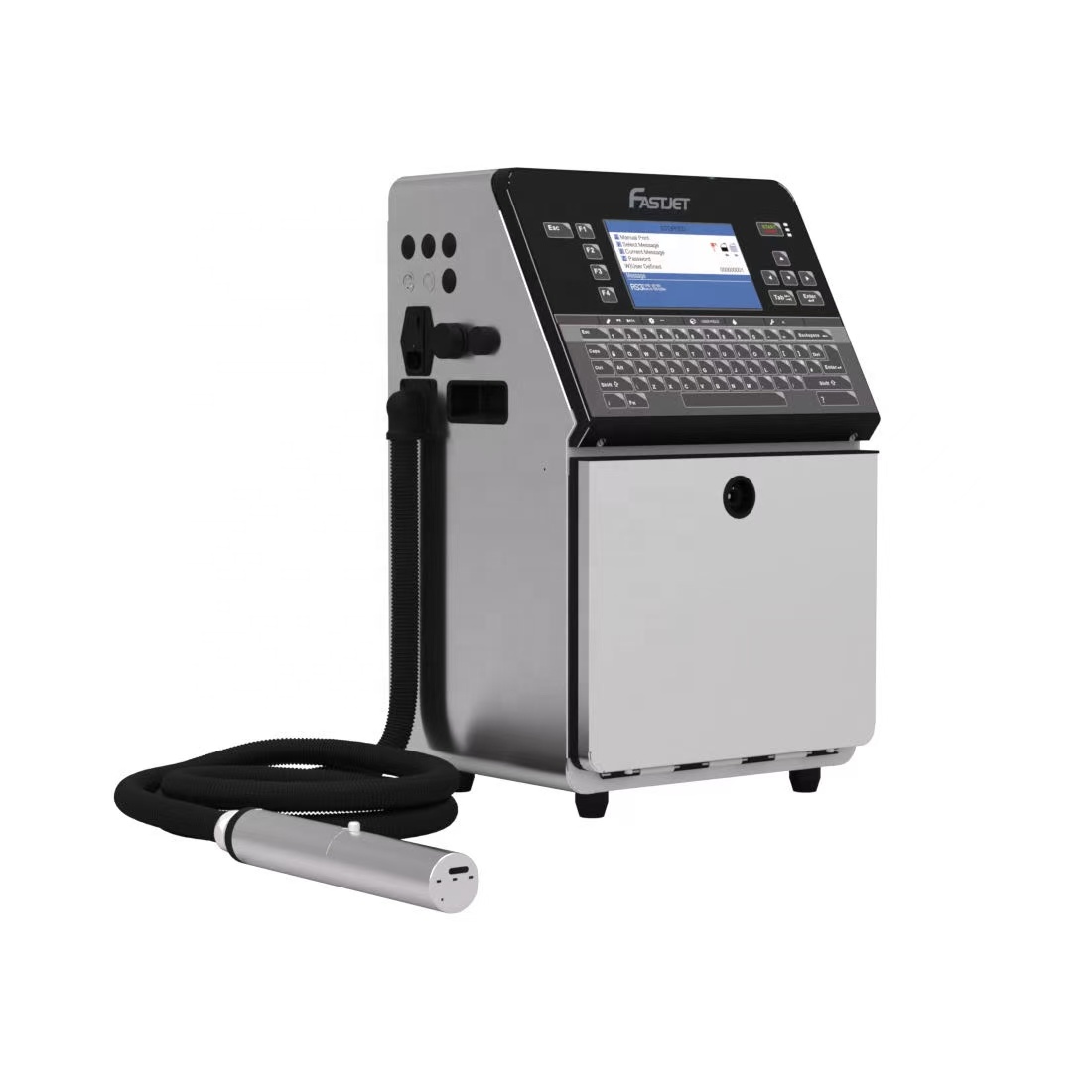

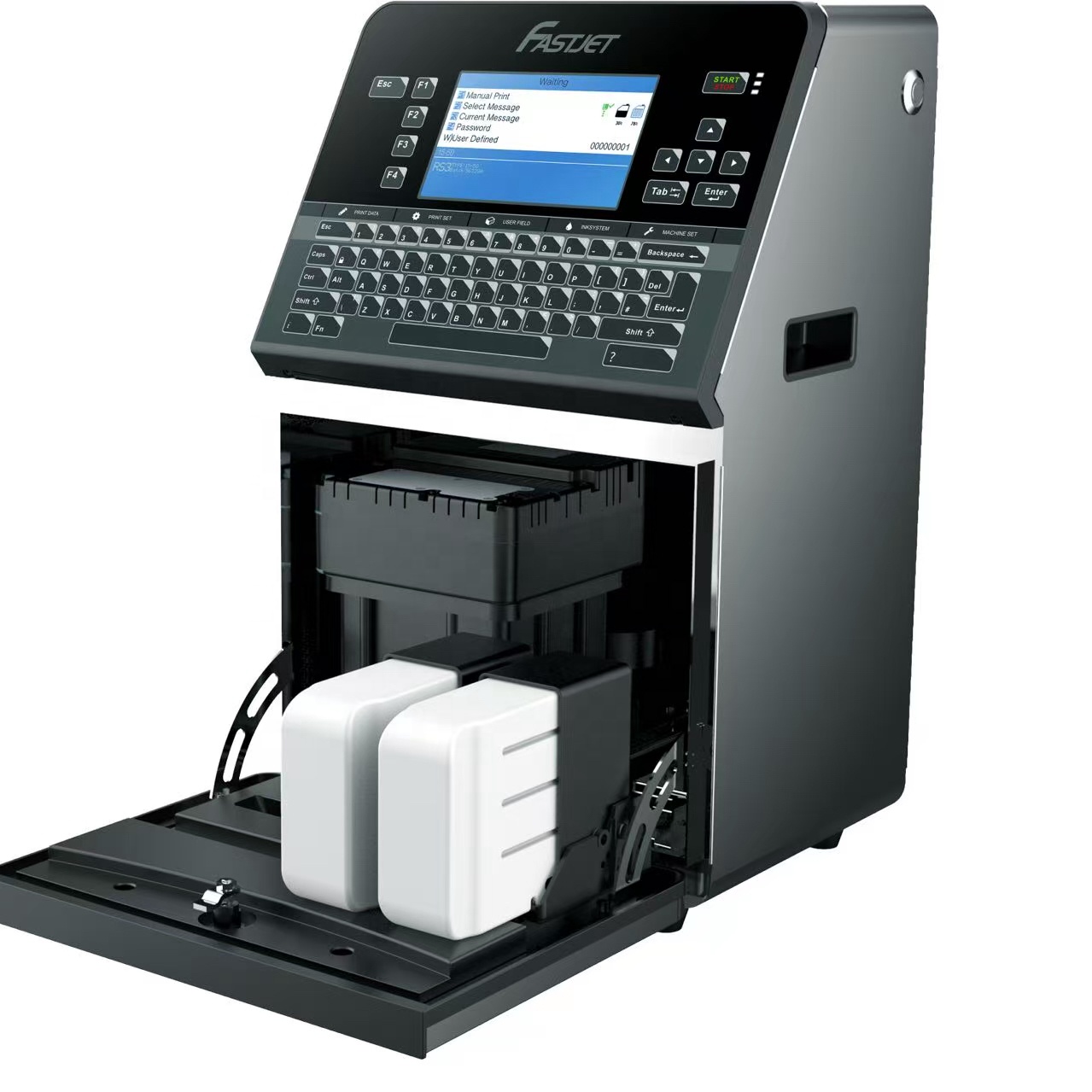

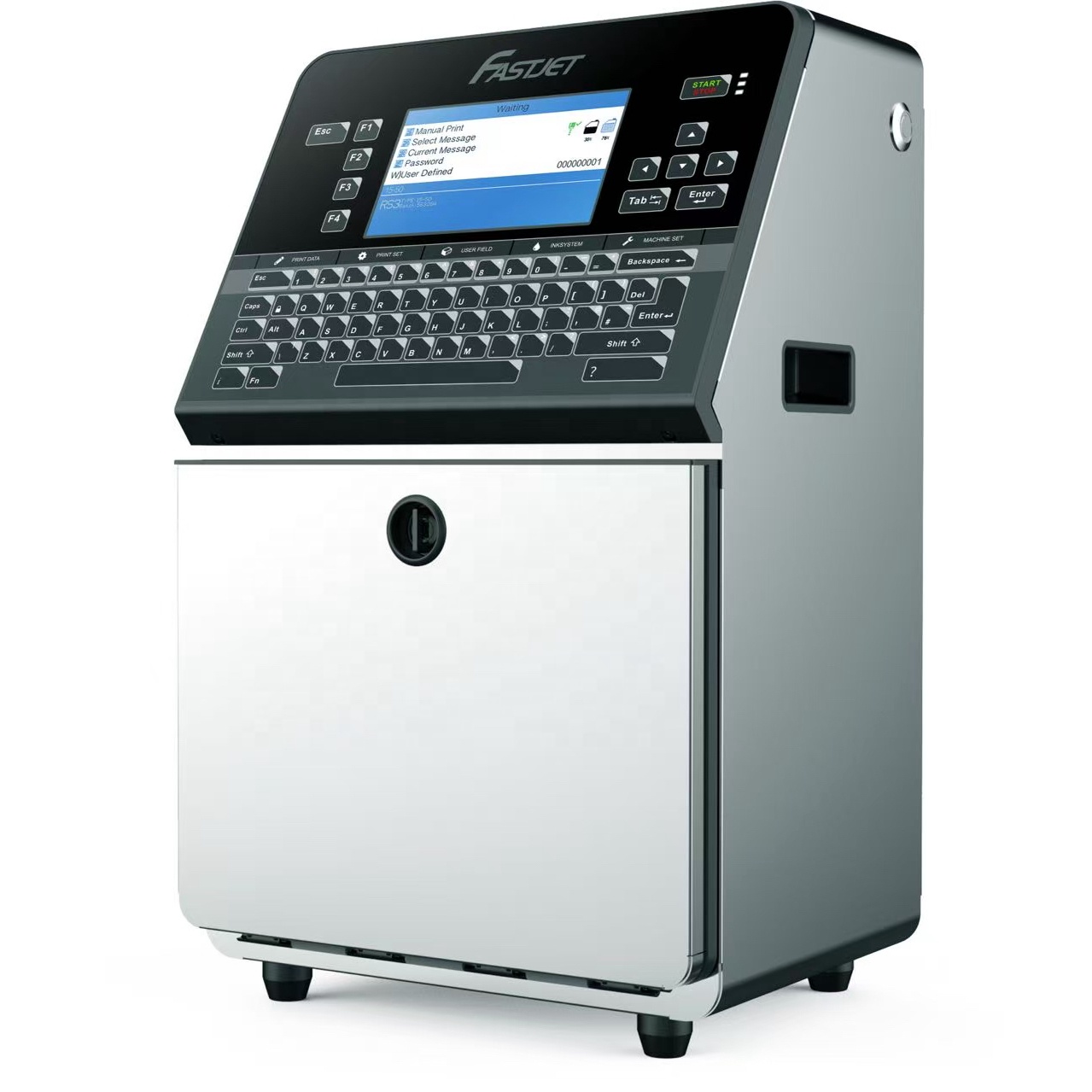

FASTJET F500 series small character inkjet printers adopt a new generation of control system that combines industrial aesthetics with modular design. This not only enhances the machine's stability but also improves its overall appearance. The printer is equipped with high-quality, standard, and high-speed printing modes that can be easily switched between to meet the diverse needs of different industries.
| Specifications | F540 | F560 | F560 Plus |
|---|---|---|---|
| Nozzle | 70/60um | 70/60/50/40um | 70/60/50/40um |
| Maximum print dot matrices | 25 | 34 | 34 |
| Chinese font library | ✓ | ✓ | ✓ |
| Multi-language | ✓ | ✓ | ✓ |
| High Speed Software | ✗ | ✓ | ✓ |
| Traverse printing | ✓ | ✓ | ✓ |
| 90 degrees vertical printing | ✓ | ✓ | ✓ |
| IP55 industrial protection (1) | ⚪ | ⚪ | ⚪ |
| Special counter | ✓ | ✓ | ✓ |
| Clock replacement | ✓ | ✓ | ✓ |
| Encoder port | ✓ | ✓ | ✓ |
| USB port | ✓ | ✓ | ✓ |
| Serial port | ⚪ | ⚪ | ⚪ |
| Gutter pump | ✗ | ✗ | ✓ |
| Positive air pump | ⚪ | ⚪ | ⚪ |
| Solvent flush pump | ✓ | ✓ | ✓ |
| Dye ink | ✓ | ✓ | ✓ |
| Pigment ink | ✗ | ✗ | ✓ |
| Umbilical (2) | Length: 2700mm | Diameter: 21mm | Bending radius: 150mm |
| Print height | 1.2-15mm |
| Maximum print speed (3) | 520m/min |
| Contact-free print distance | 2-15mm |
| Input system | Standard American Keyboard of WYSIWYG |
| Selectable dot matrix fonts | 5x5, 7x4, 7x5, 9x6, 11x8, 16x11, 24x16, 32x22, 6x5, 9x6(bold), 11x8(bold) |
| Operating Range | 5-45 degrees celsius |
| User field | Barcode, QR code, logo, clock, counter, shift, etc. |
| Electricity | 200-240VAC, 50Hz |
| Power | Rated power 150W |
| Net weight | 27kg |
| Gross weight | 45kg (Including accessories and packing box) |
