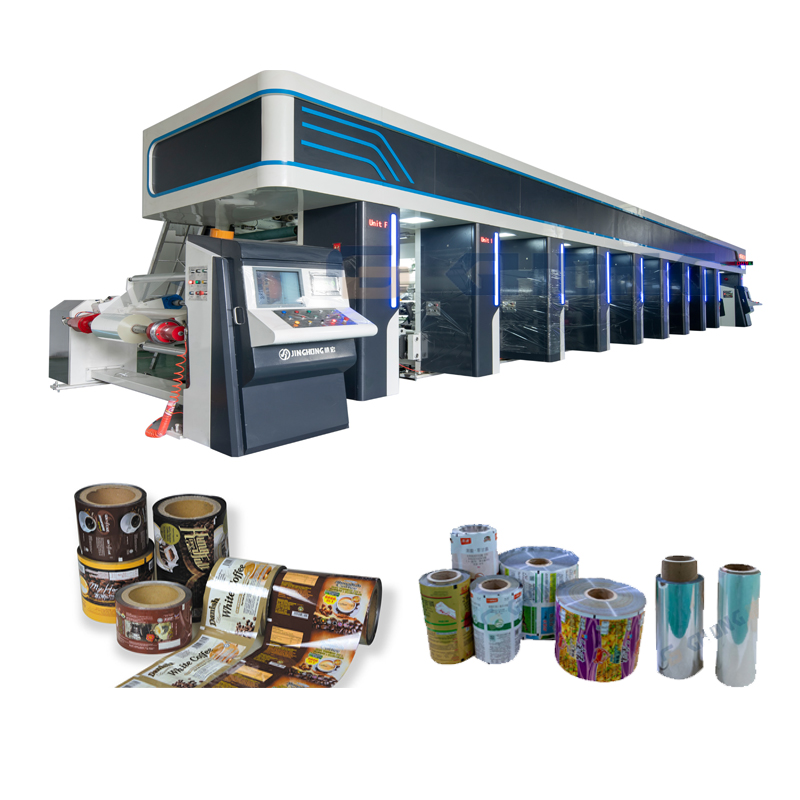

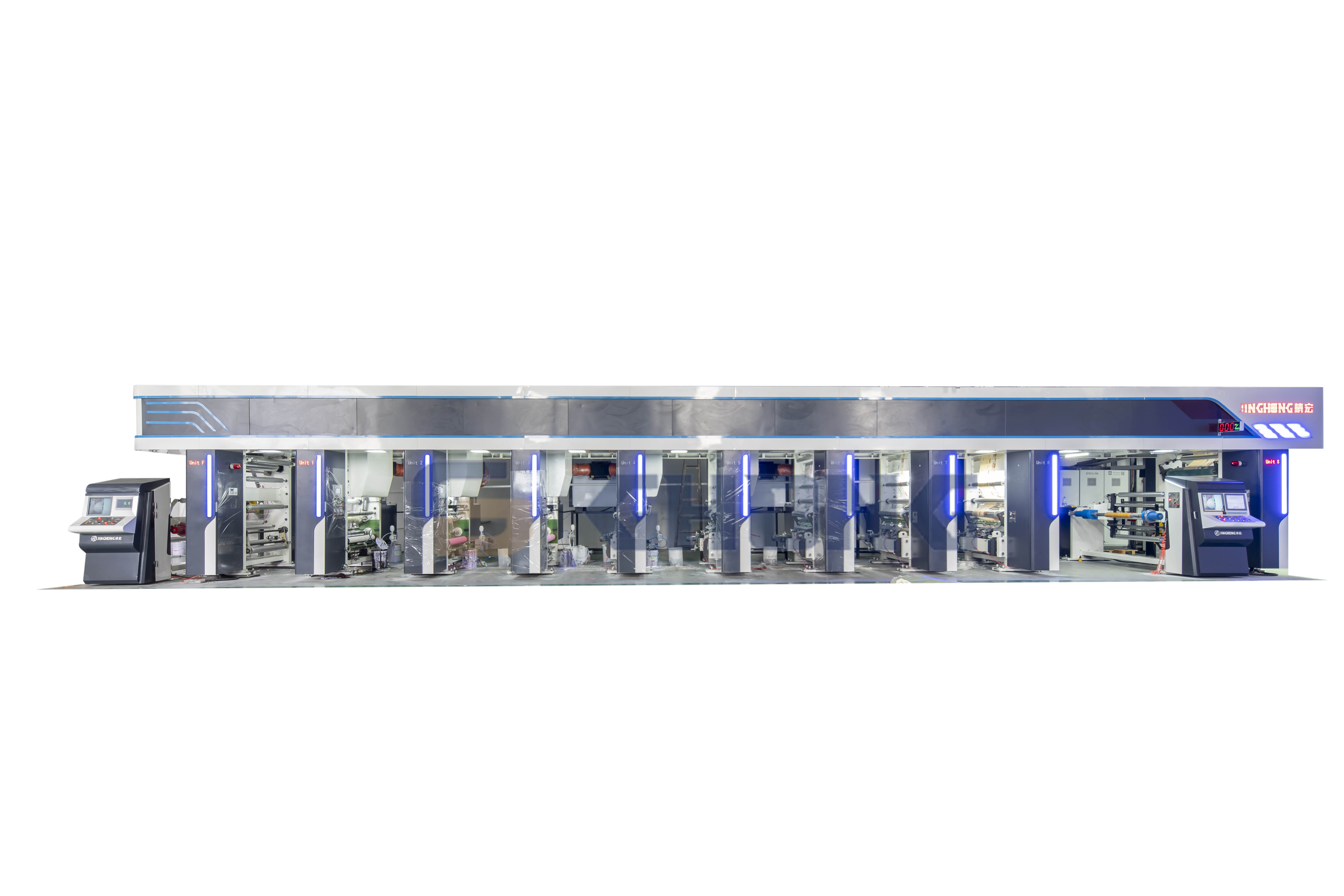

Food Packaging Rotogravure Printing Machine for Plastic Paper Film and BOPP Printing

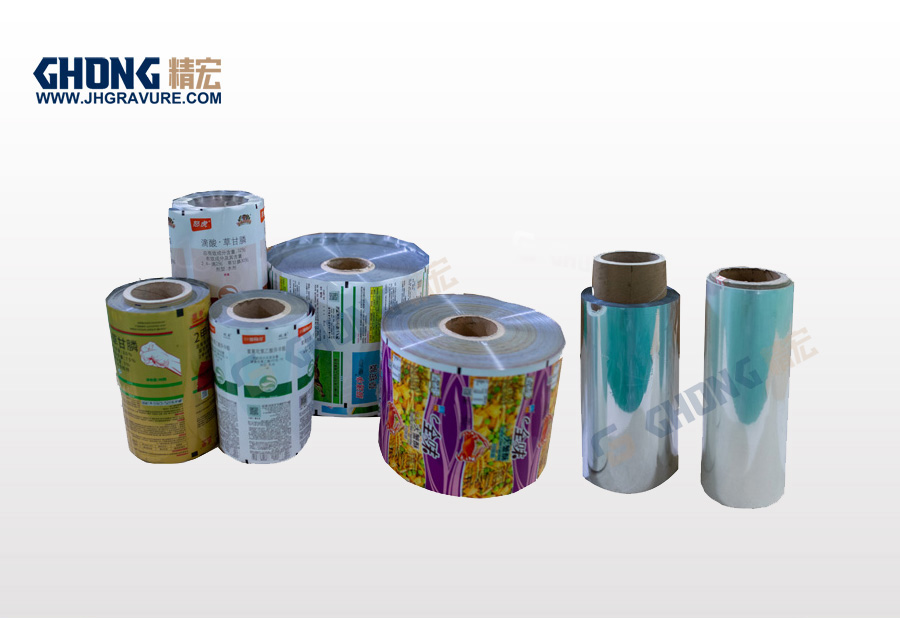

★Samples
★Application
This machine is suitable for continuous, multi-color printing or rolling material in good printing performance such as tobacco packing, paper, non woven, PP woven, aluminum foil, BOPP, PET, NYLON, PVC, PE and so on.
★Features
-
✔
The machine is three motors system control. It can choose five motors or seven motors.
-
✔

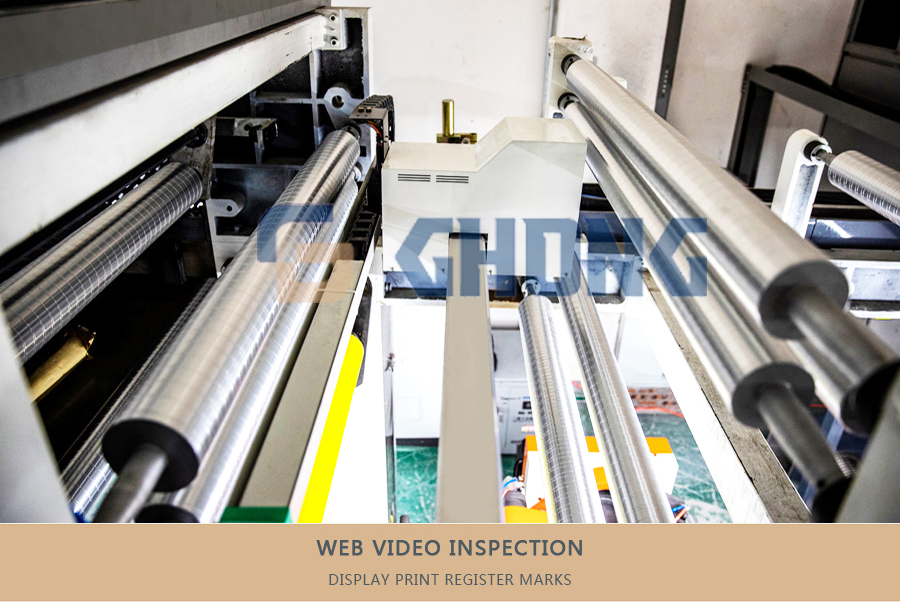

Computer registering devices and static camera examining graphics.
-
✔

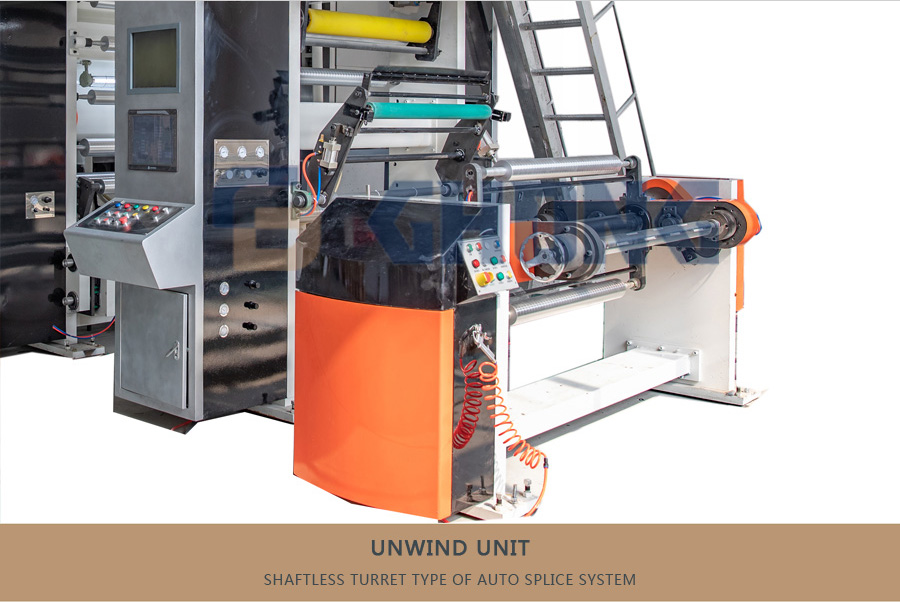

Double reel stations inside, non-stop splicing.
-
✔
Adopting variable frequency motor control for main driver, unwinder and feeding.
-
✔
Unwinder auto tension controller and rewinding by two variable frequency motors.
-
✔

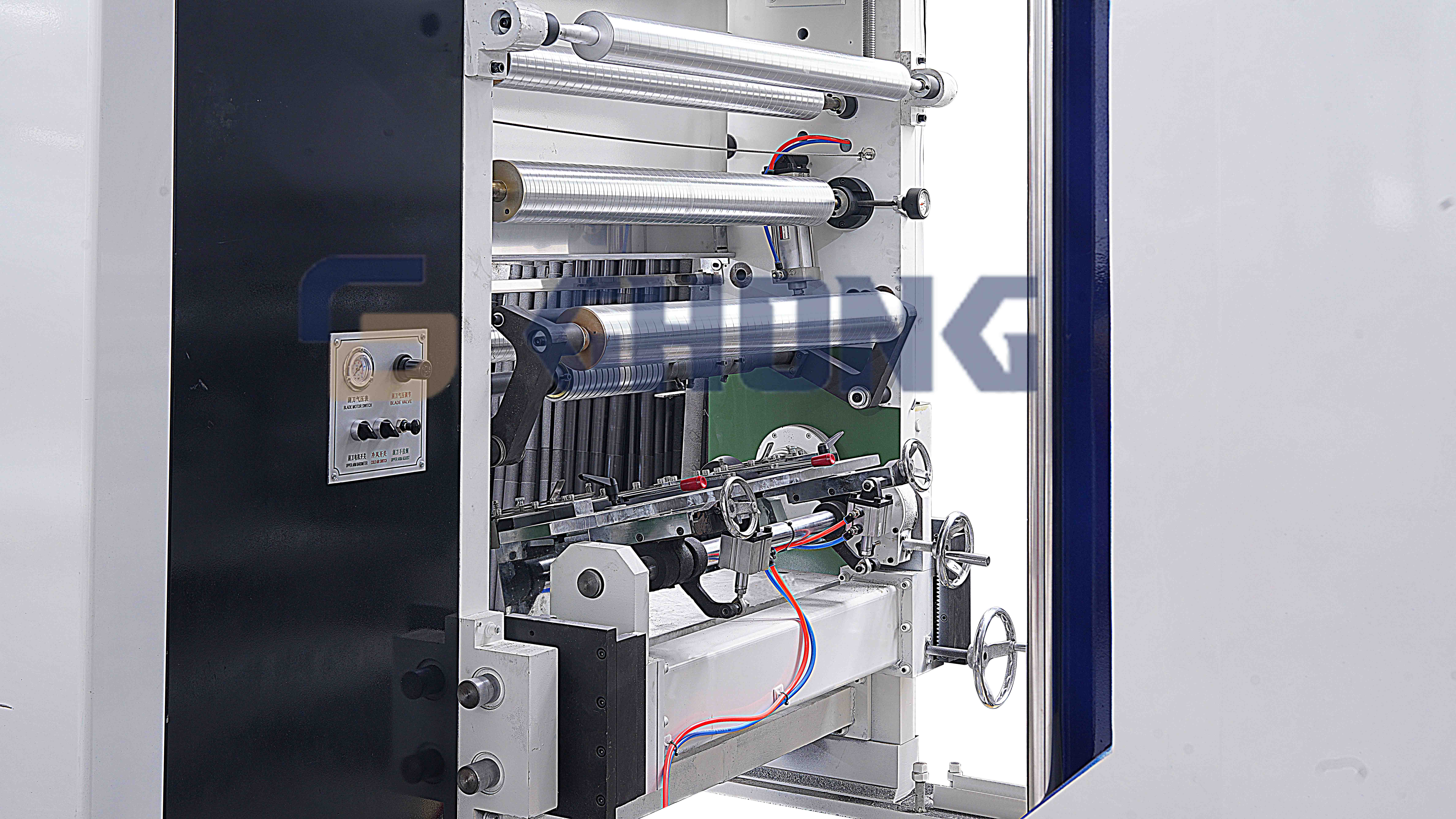

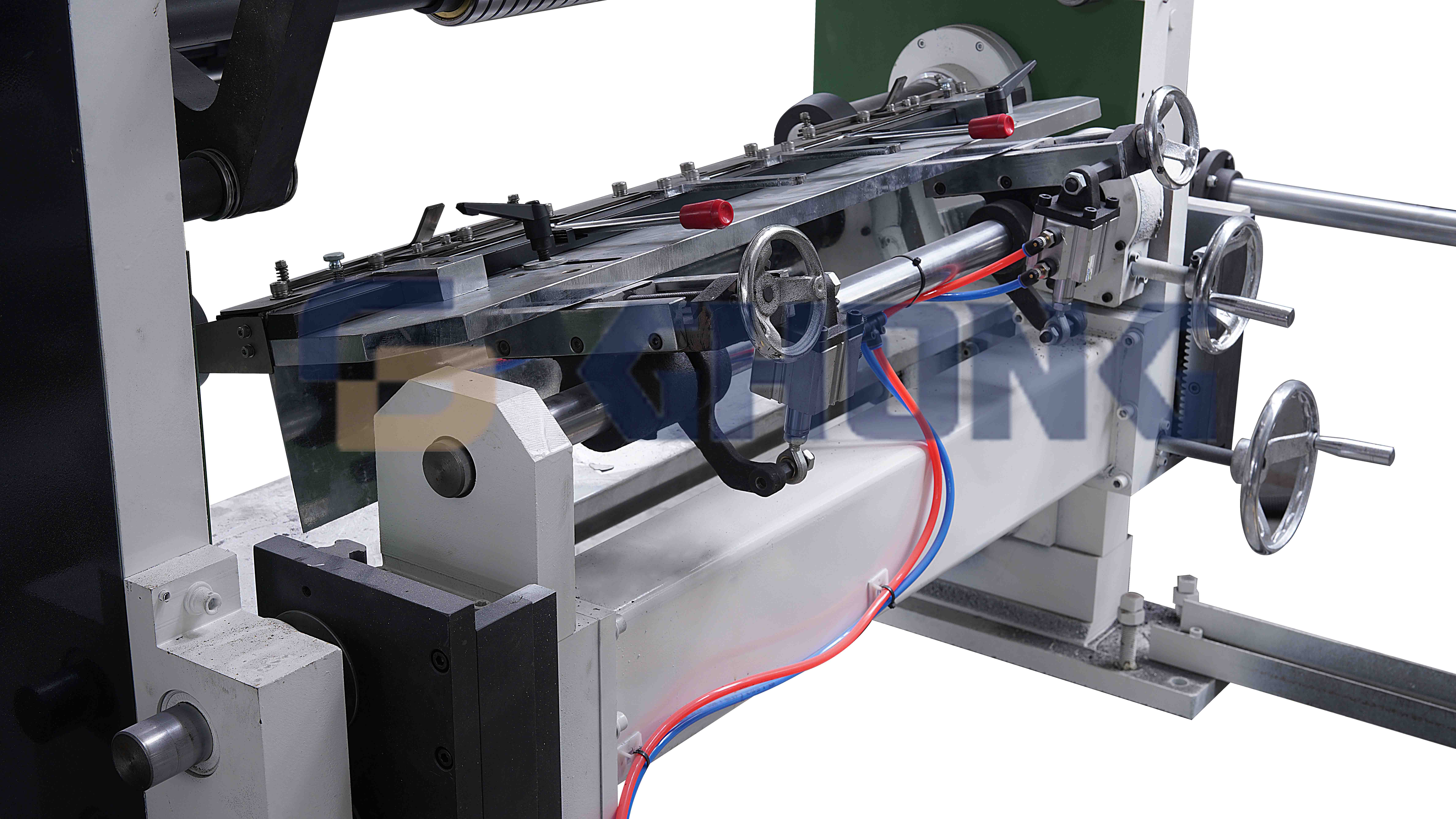

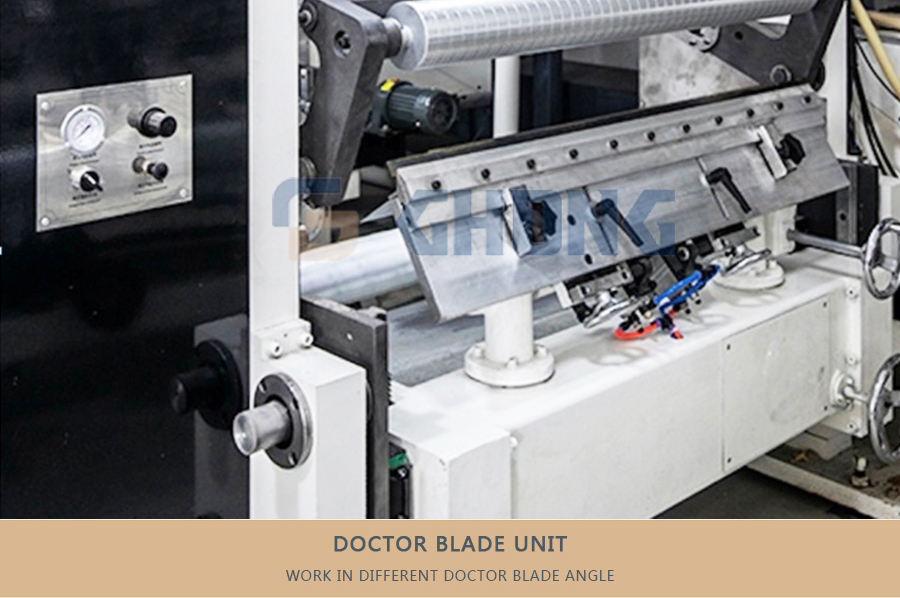

Shaft less cylinder loading. Pneumatic backpressure moving doctor blade, three side adjusting and double air cylinder pressure.
-
✔

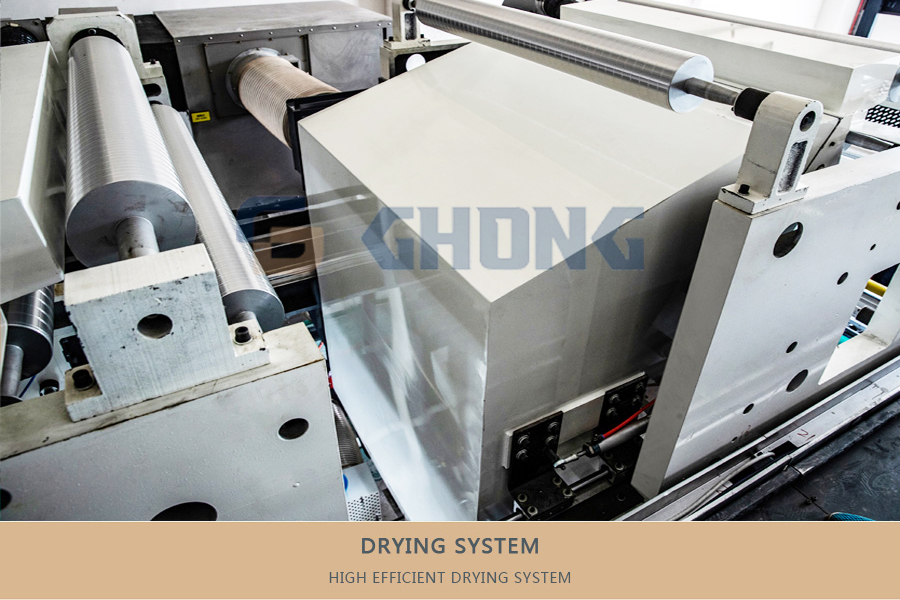

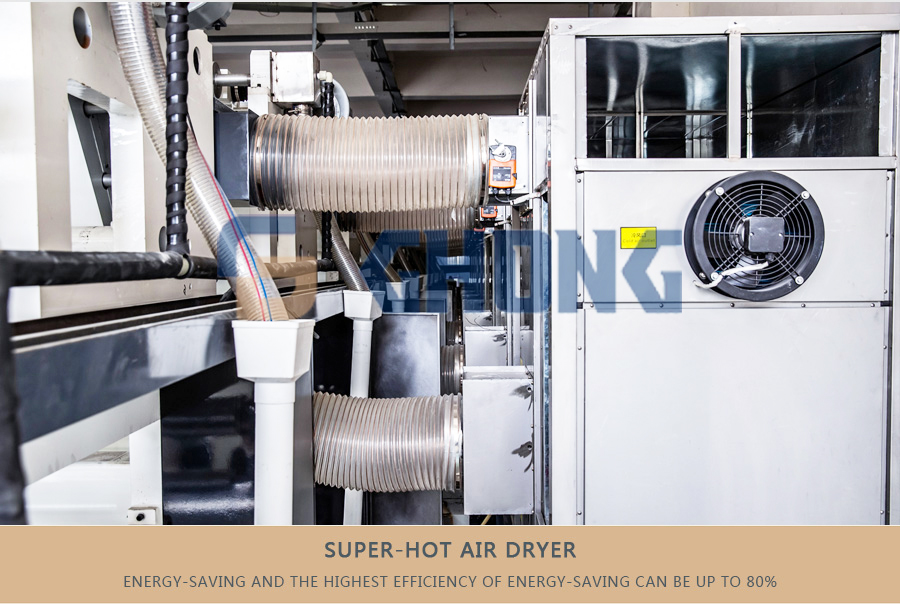

Sealed type oven, outside heating system, Hot-air circulation system, auto constant temperature control system.
-
✔
Adopting aluminum alloy guide roll after anode oxidation processing and in balance.
-
✔
High-accuracy gear transmission box, adopting patented technique.
★Specifications
| Model |
JHAY-A-650 |
JHAY-A-850 |
JHAY-A-1050 |
| No. of colors |
1-12 |
1-12 |
1-12 |
| Printing cylinder diameter |
100-320mm |
100-320mm |
100-320mm |
| Printing width |
600mm |
800mm |
1000mm |
| Rewind & Unwind diameter |
600mm |
600mm |
600mm |
| Printing speed |
100-350m/min |
100-350m/min |
100-350m/min |
| Dry form |
electric heating |
electric heating |
electric heating |
| Total power |
162kw |
170kw |
178kw |
| Dimension |
14500*3150*2880mm |
14500*3350*2880mm |
14500*3550*2880mm |
| Weight |
15000kg |
16000kg |
17000kg |

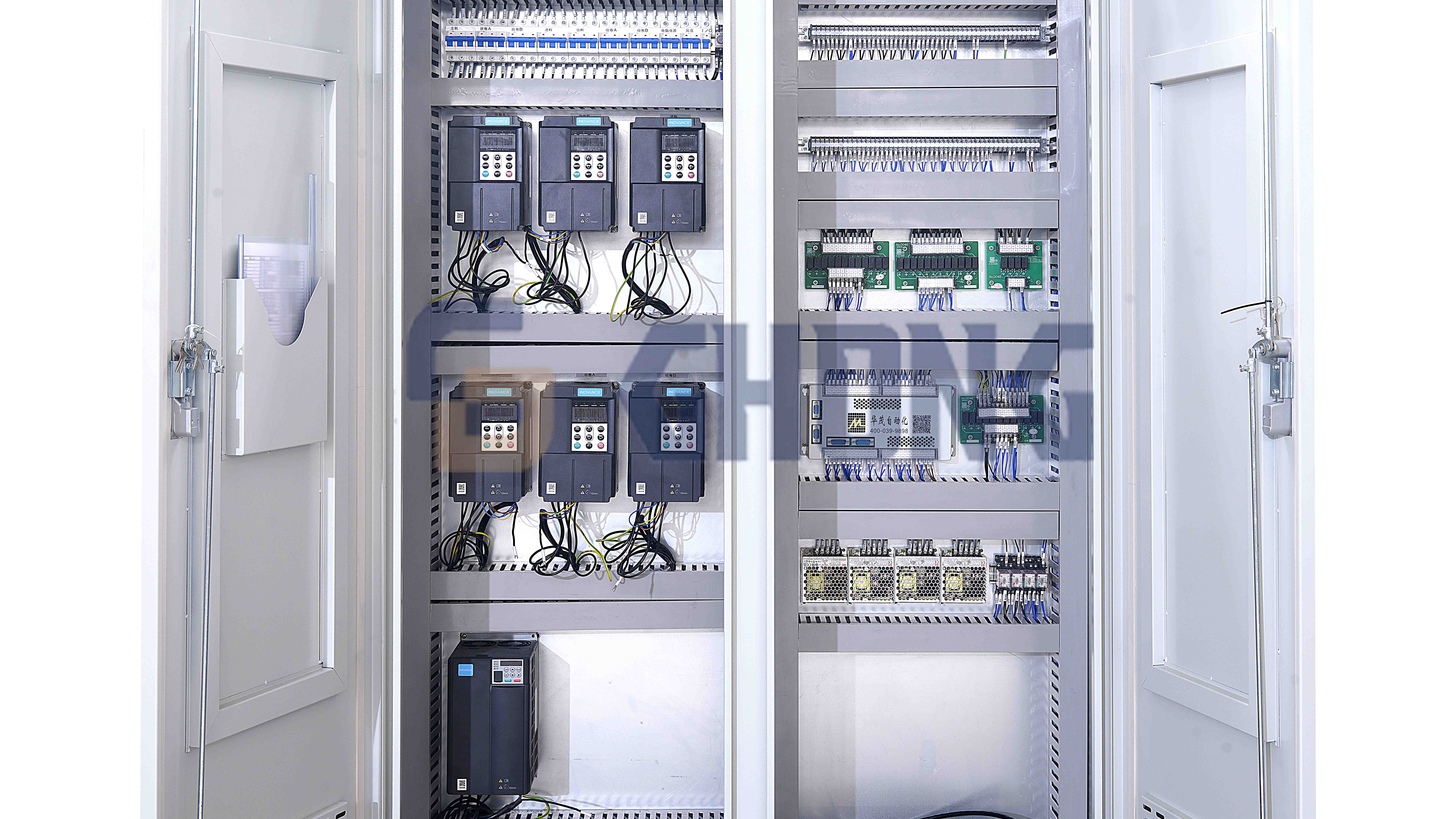

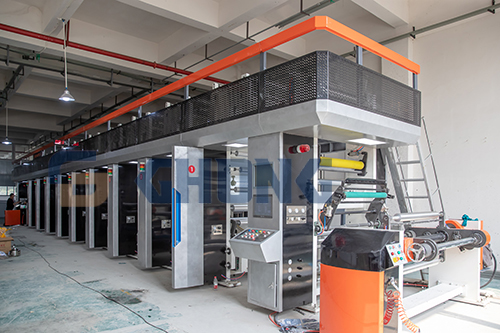

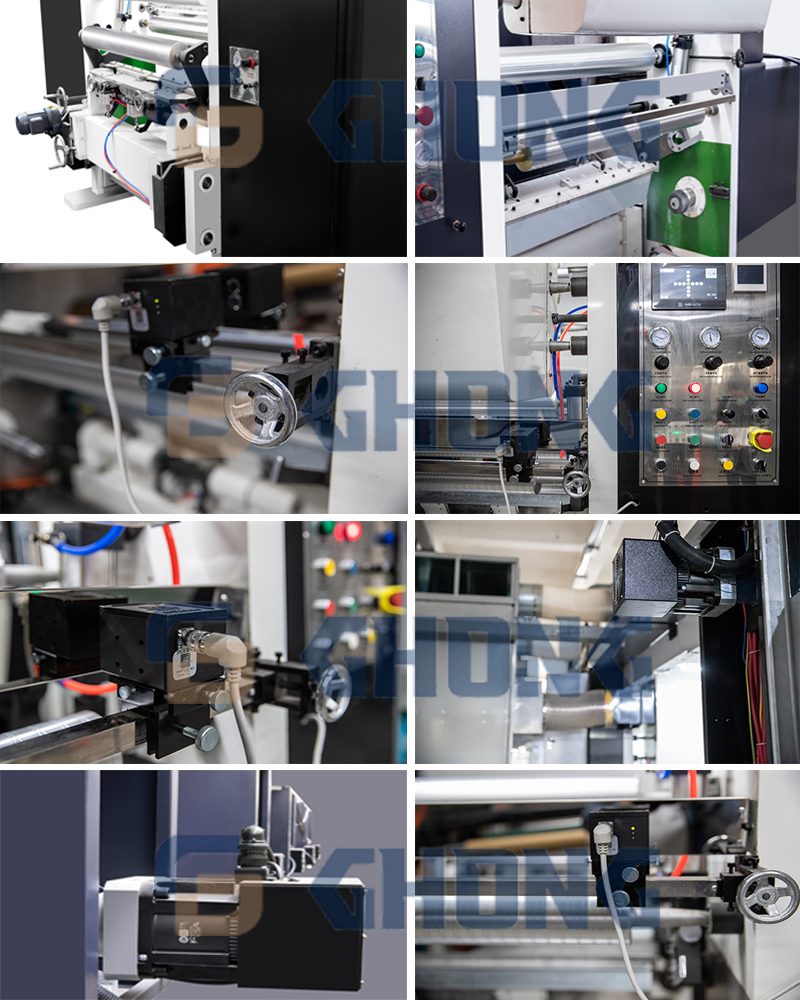

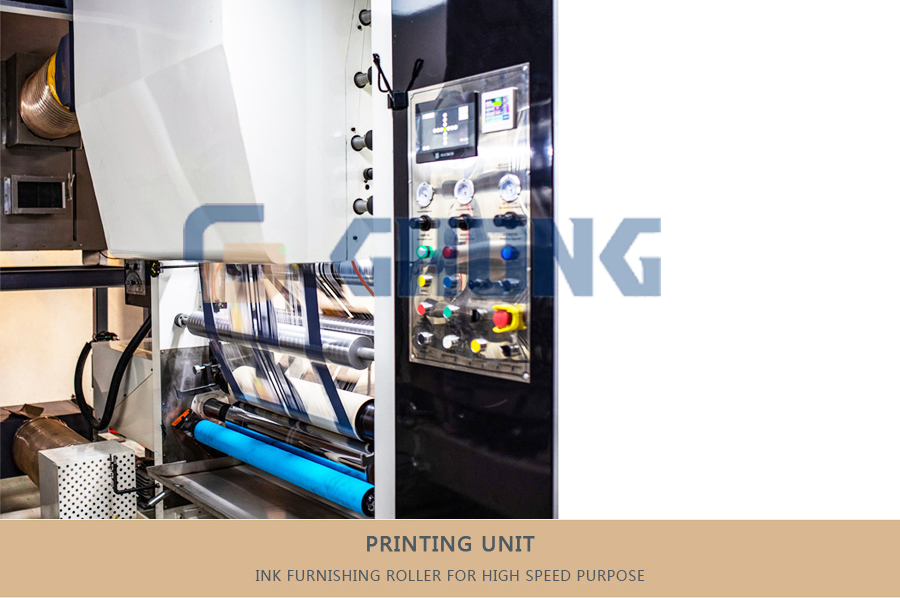

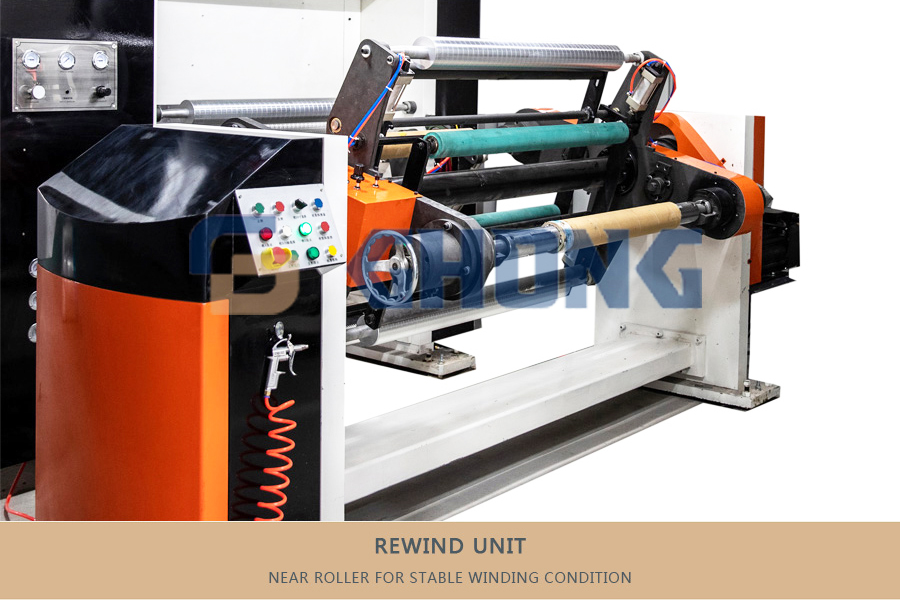

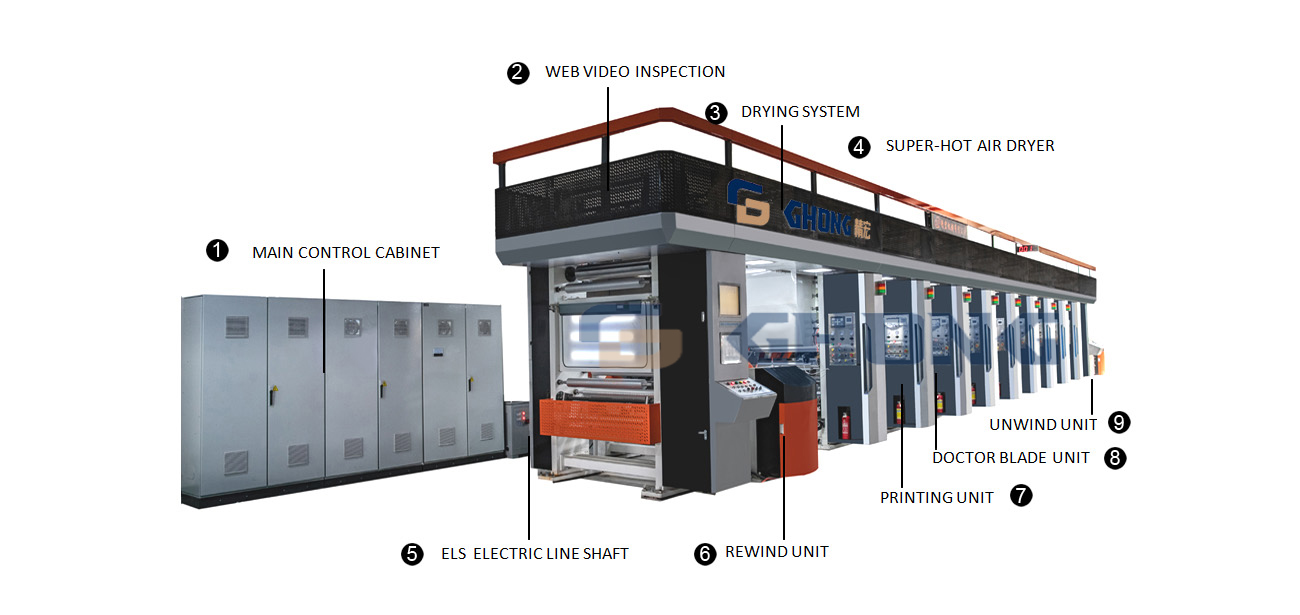

★Details Images

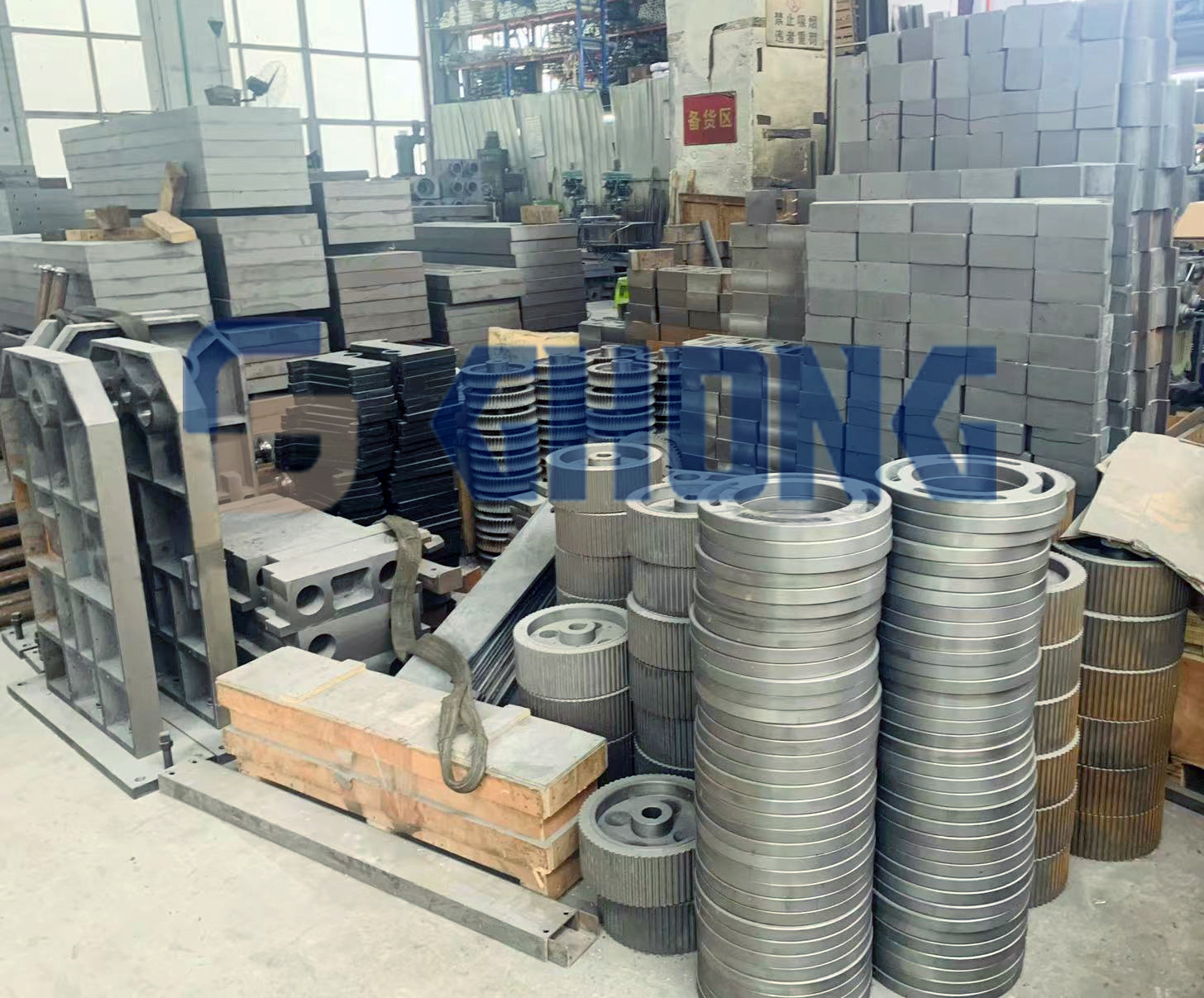

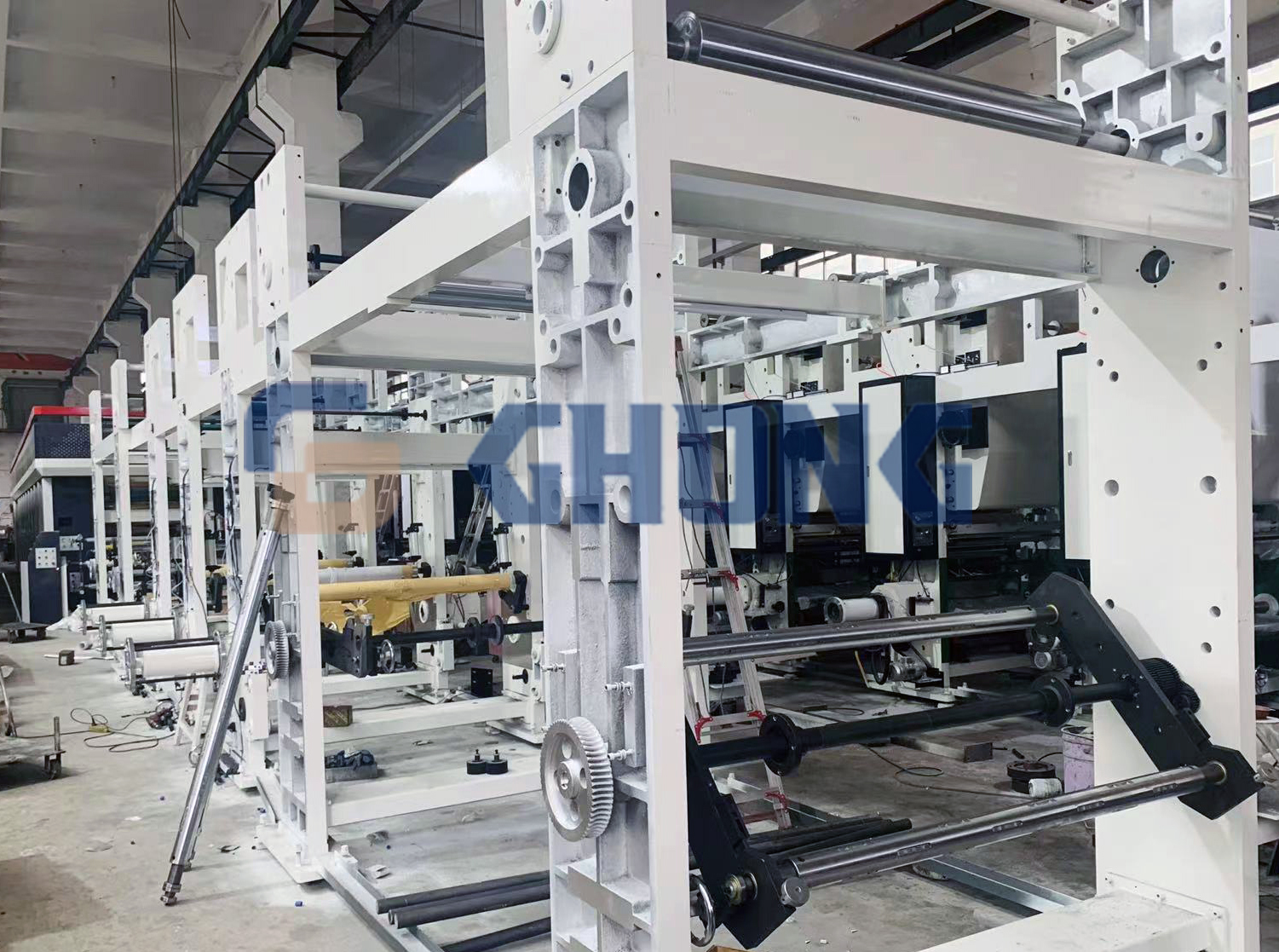

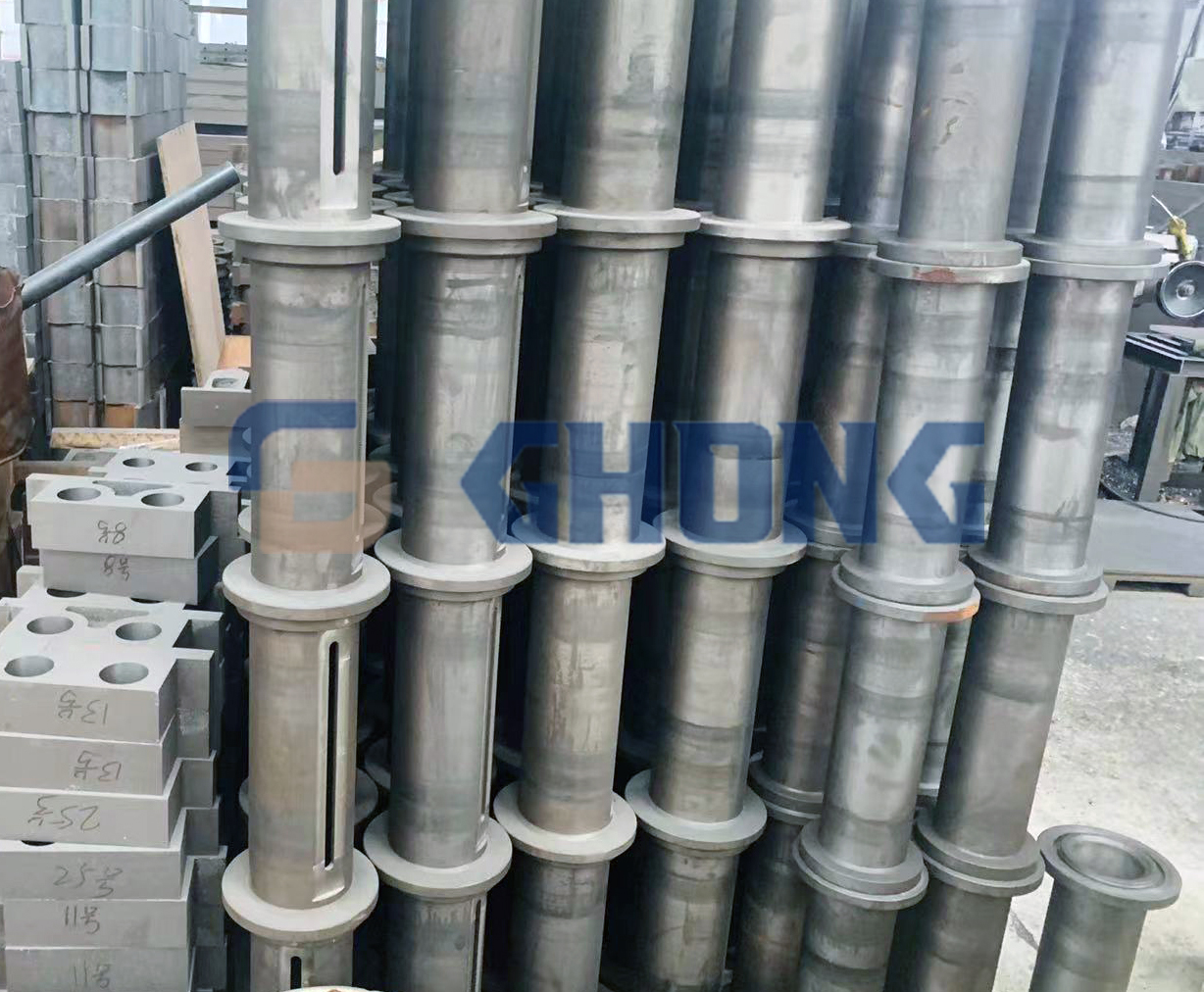

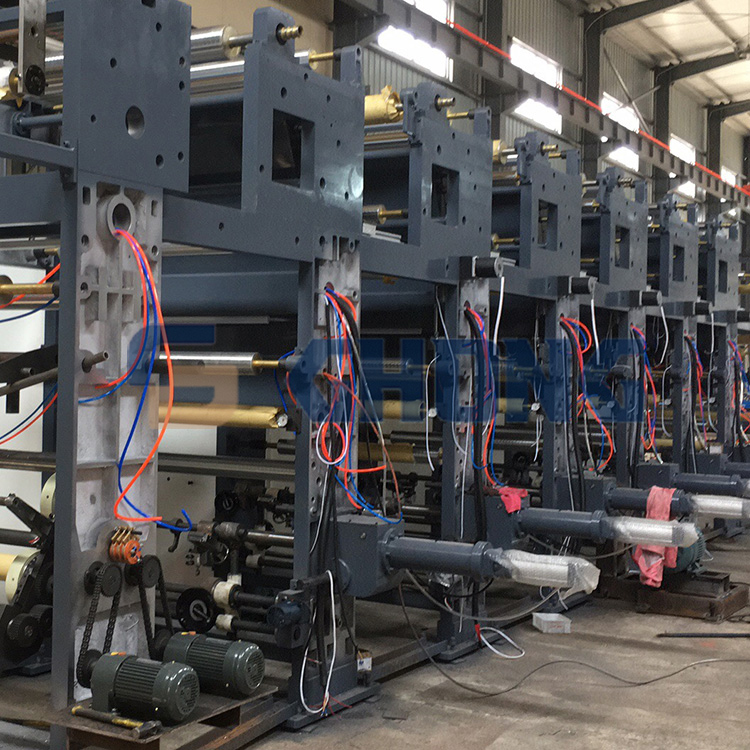

★Production

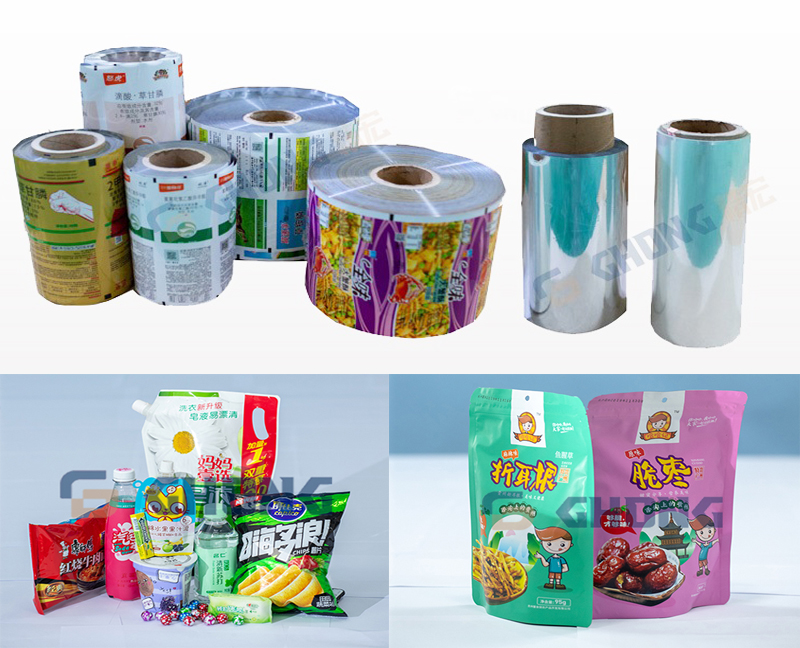

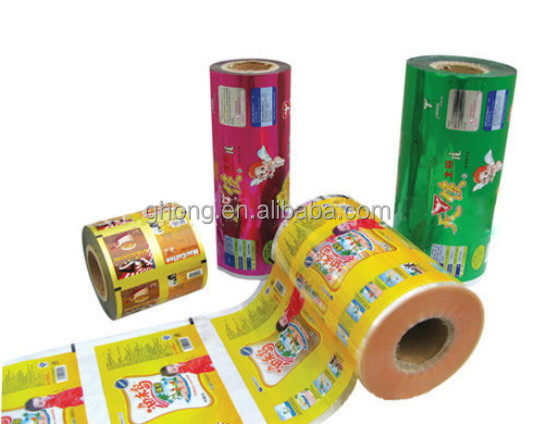

★Samples

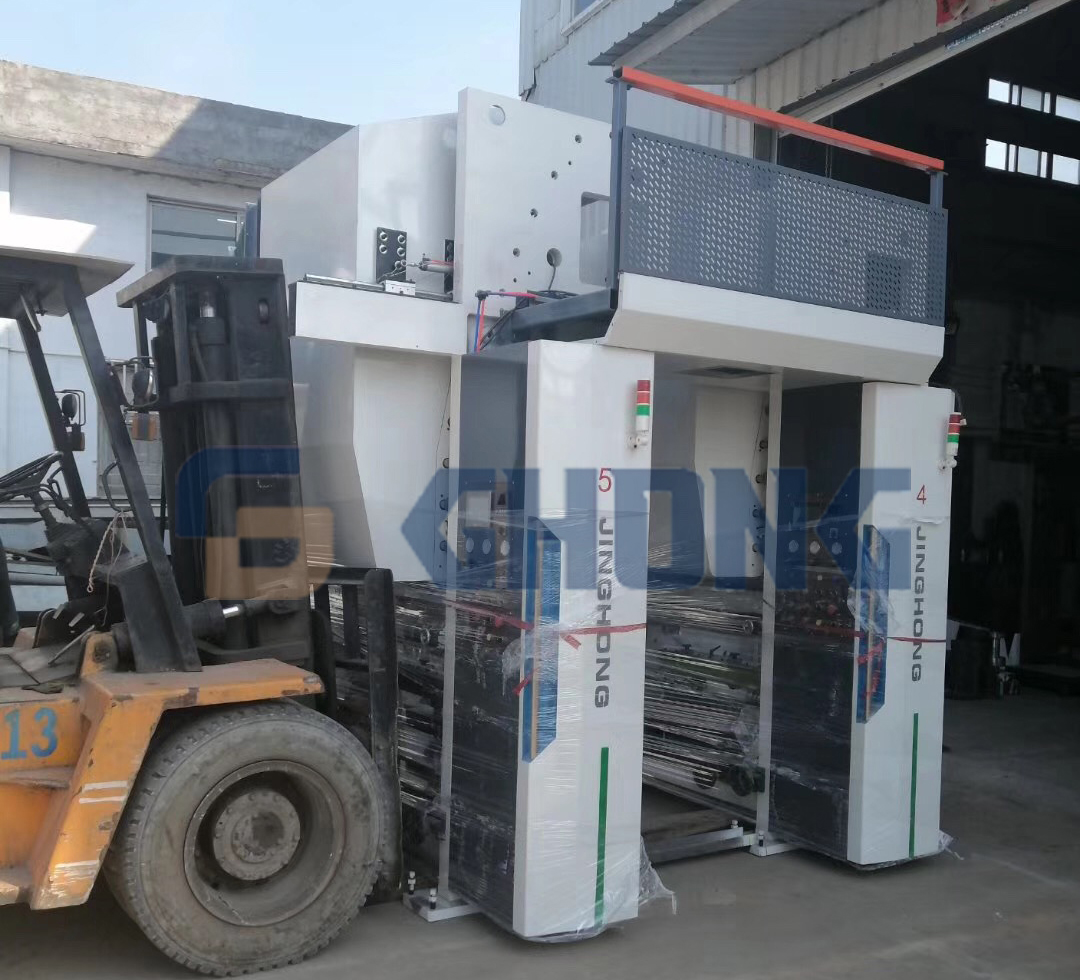

★Packaging & Delivery
★FAQ
Q1What materials are suitable for this rotogravure printing machine?
This machine is ideal for processing various continuous rolling materials with excellent printing performance, including plastic films (BOPP, PET, NYLON, PVC, PE), paper, non-woven fabrics, PP woven materials, and aluminum foil.
Q2How many colors can this rotogravure printing machine support?
Our rotogravure printing machines are highly customizable and support a configuration ranging from 1 to 12 printing colors to match your production requirements.
Q3What is the maximum printing speed of the machine?
The maximum printing speed ranges between 100 to 350 meters per minute, depending on the specific model (JHAY-A-650, JHAY-A-850, or JHAY-A-1050) and material specifications.
Q4How does the non-stop splicing feature work?
The machine is equipped with double reel stations inside both the unwinder and rewinder units. This allows the operator to execute non-stop material splicing, significantly reducing downtime during roll changes.
Q5What type of heating system is used for drying?
The machine features a sealed-type oven equipped with an external electric heating system, a hot-air circulation system, and an automatic constant temperature control system to ensure energy efficiency and rapid drying.
Q6How does the machine ensure registration accuracy?
High accuracy is maintained through computerized automatic registering devices paired with a static camera examining system to monitor graphics in real-time.
