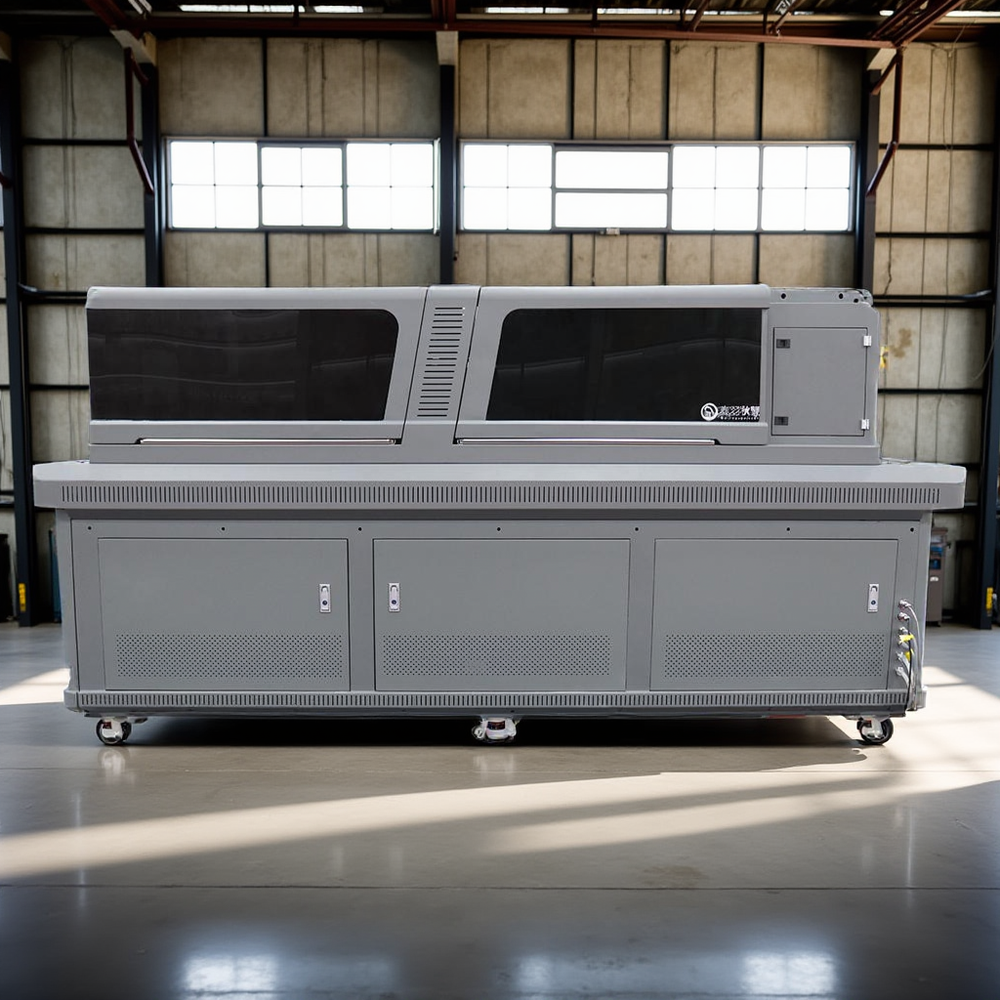

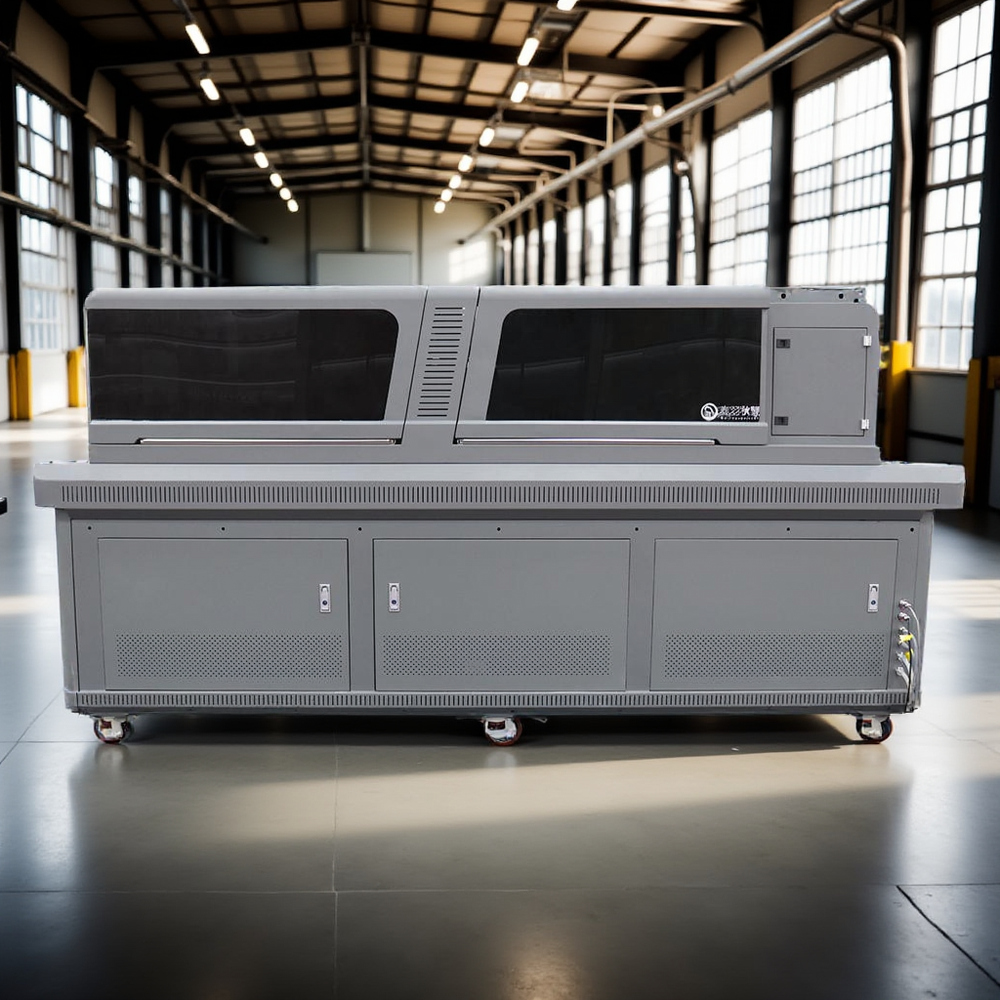

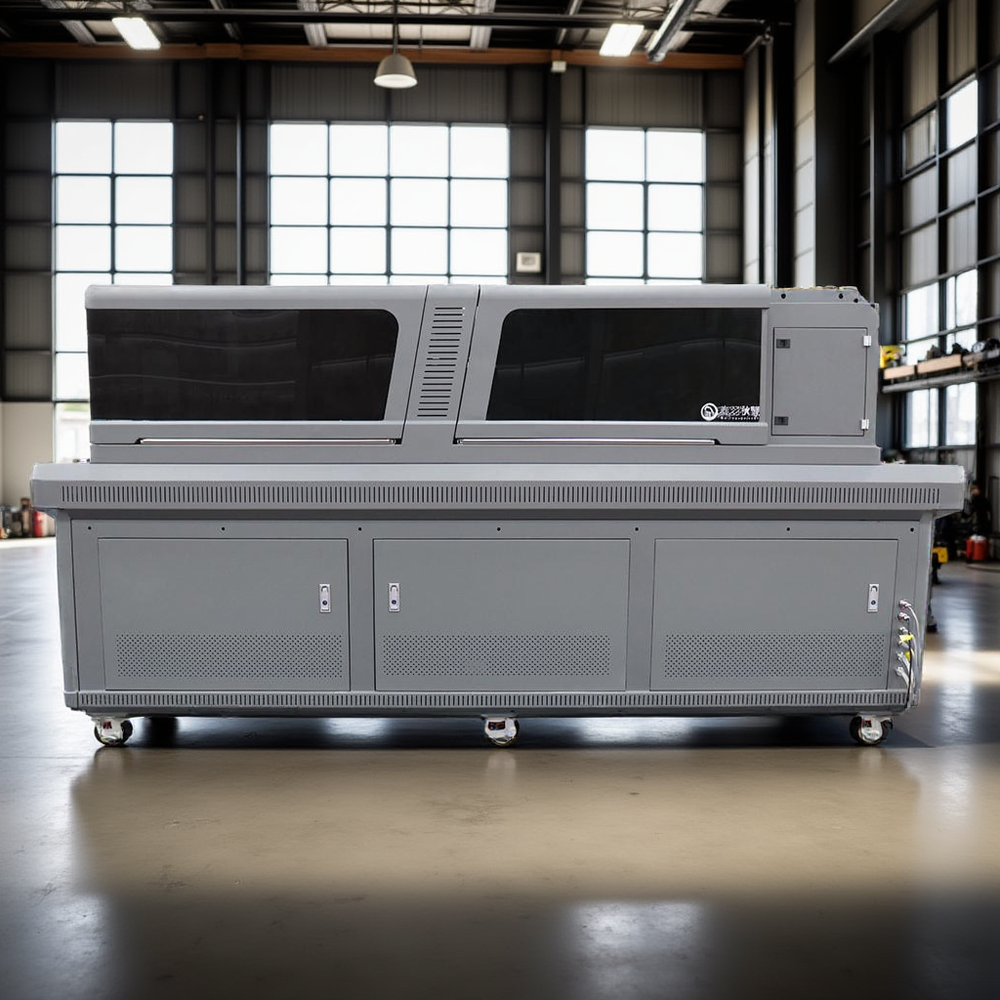

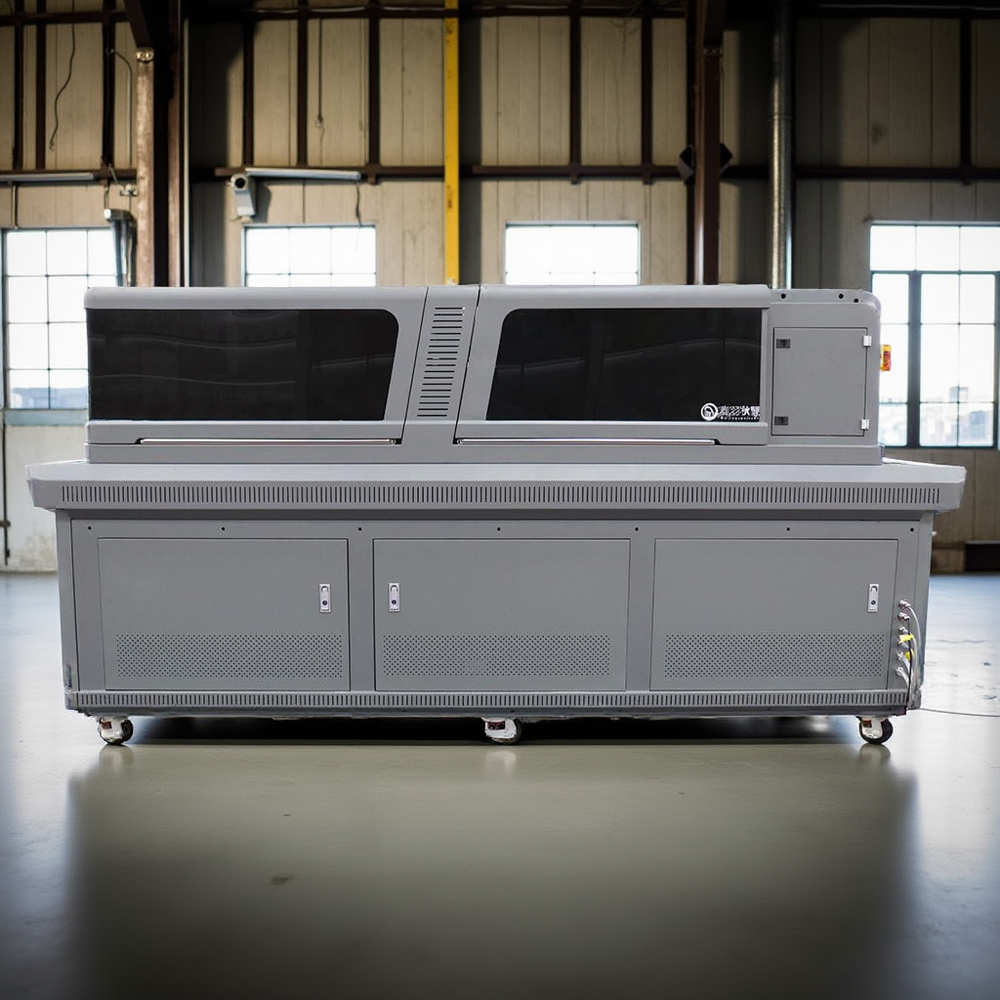

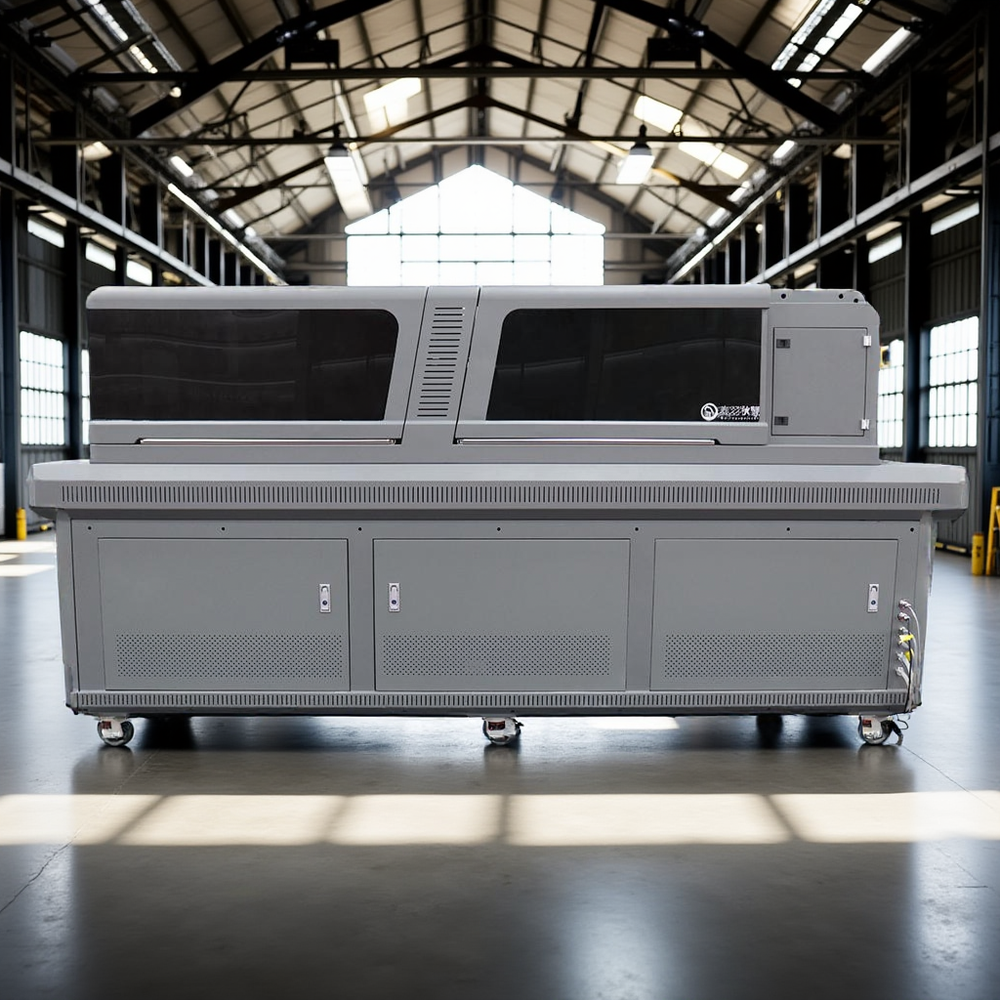

Digital Printer for Corrugated Cardboard Single Pass Printer for Flexible Packaging Film Foil Bags Pouches
Digital Printer for Corrugated Cardboard Single Pass Printer for Flexible Packaging Film Foil Bags Pouches
Digital Printer for Corrugated Cardboard Single Pass Printer for Flexible Packaging Film Foil Bags Pouches
Digital Printer for Corrugated Cardboard Single Pass Printer for Flexible Packaging Film Foil Bags Pouches
Digital Printer for Corrugated Cardboard Single Pass Printer for Flexible Packaging Film Foil Bags Pouches
1 / 5
Digital Printer for Corrugated Cardboard Single Pass Printer for Flexible Packaging Film Foil Bags Pouches
Digital Printer for Corrugated Cardboard Single Pass Printer for Flexible Packaging Film Foil Bags Pouches
Digital Printer for Corrugated Cardboard Single Pass Printer for Flexible Packaging Film Foil Bags Pouches
Digital Printer for Corrugated Cardboard Single Pass Printer for Flexible Packaging Film Foil Bags Pouches
Digital Printer for Corrugated Cardboard Single Pass Printer for Flexible Packaging Film Foil Bags Pouches

Digital Printer for Corrugated Cardboard Single Pass Printer for Flexible Packaging Film Foil Bags Pouches

Send Inquiry

Product Description

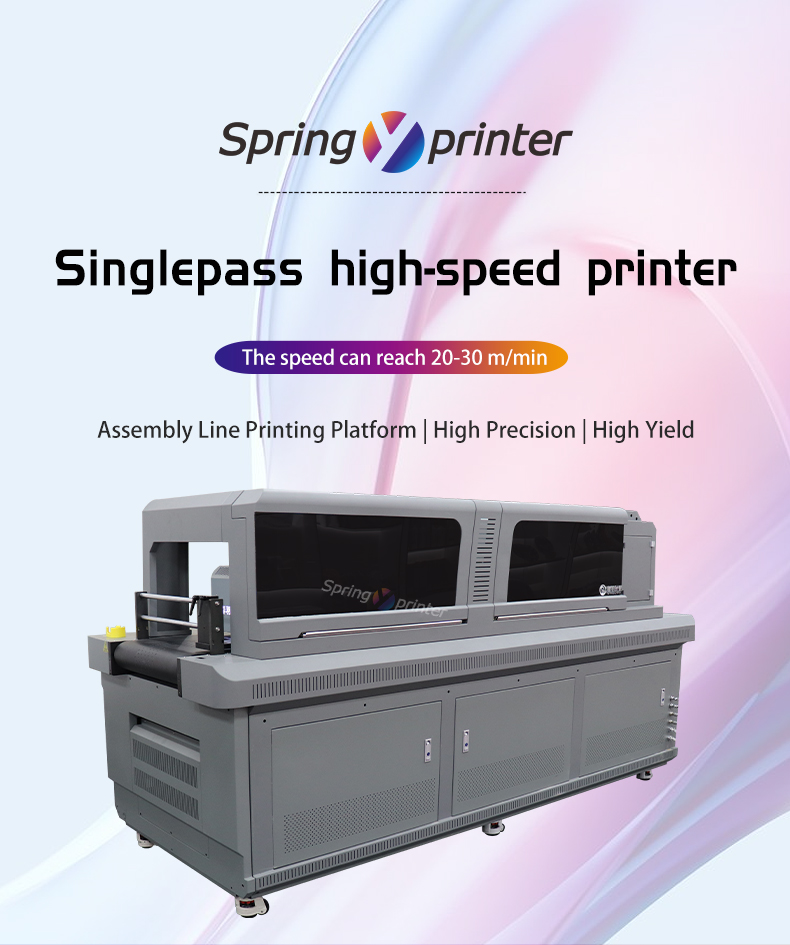

Single Pass Printer Overview

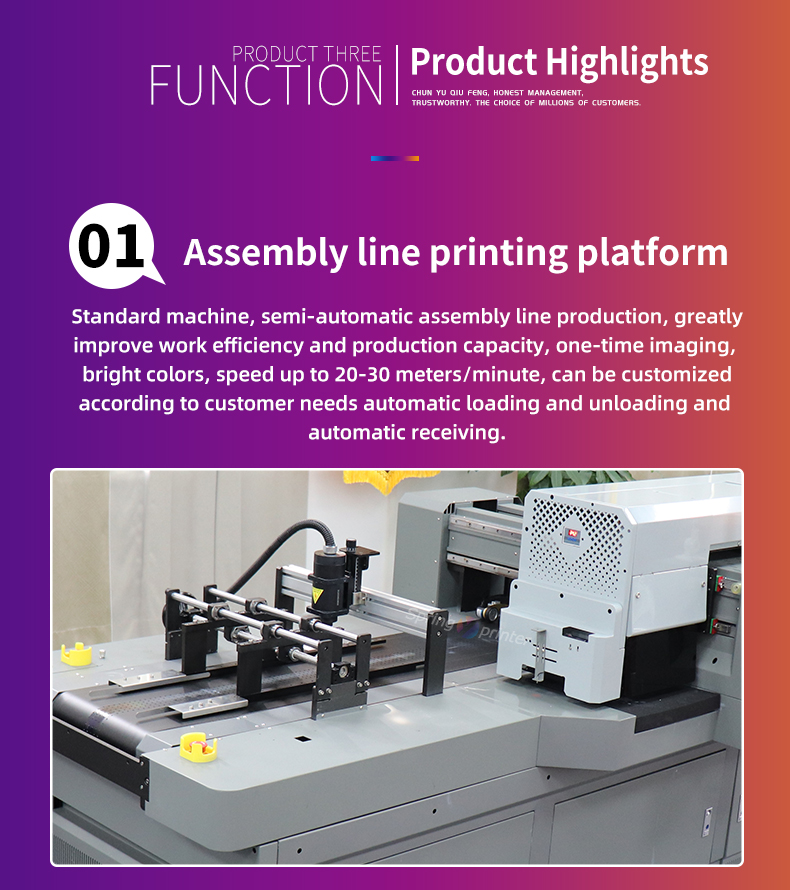

Printer Feature Details 1

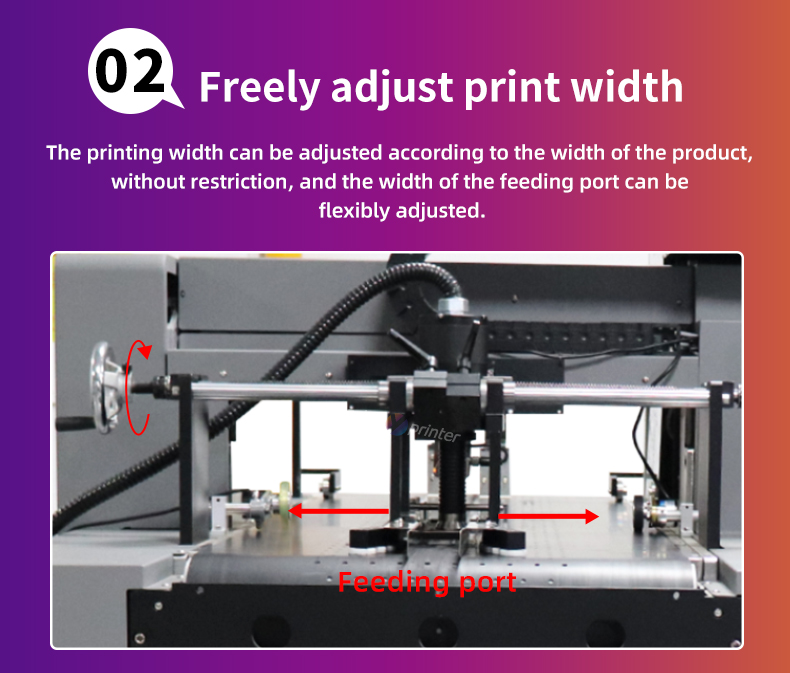

Printer Feature Details 2

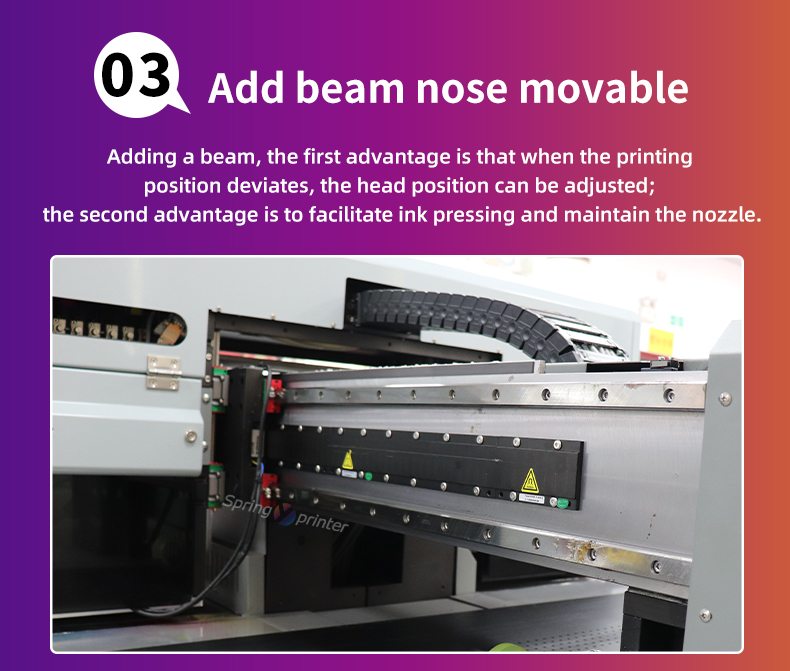

Printer Feature Details 3
Printer Feature Details 4

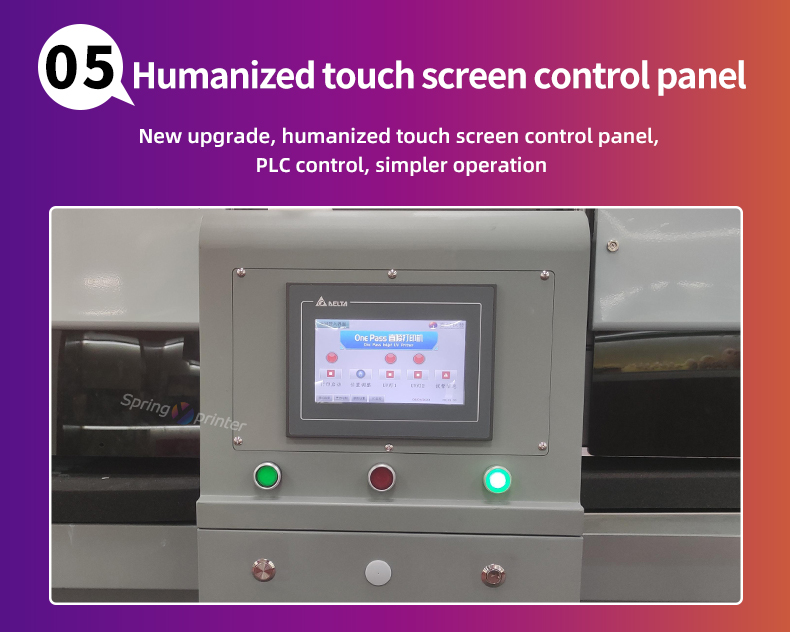

Printer Feature Details 5
Printer Feature Details 6
Printer Feature Details 7
Printer Feature Details 8
Printer Feature Details 9
Printer Feature Details 10
Printer Core Components
Printing Capabilities Showcase
Single Pass Specifications
Print head RICOH G5
Printing size 0-50cm
Printing height 0-35cm

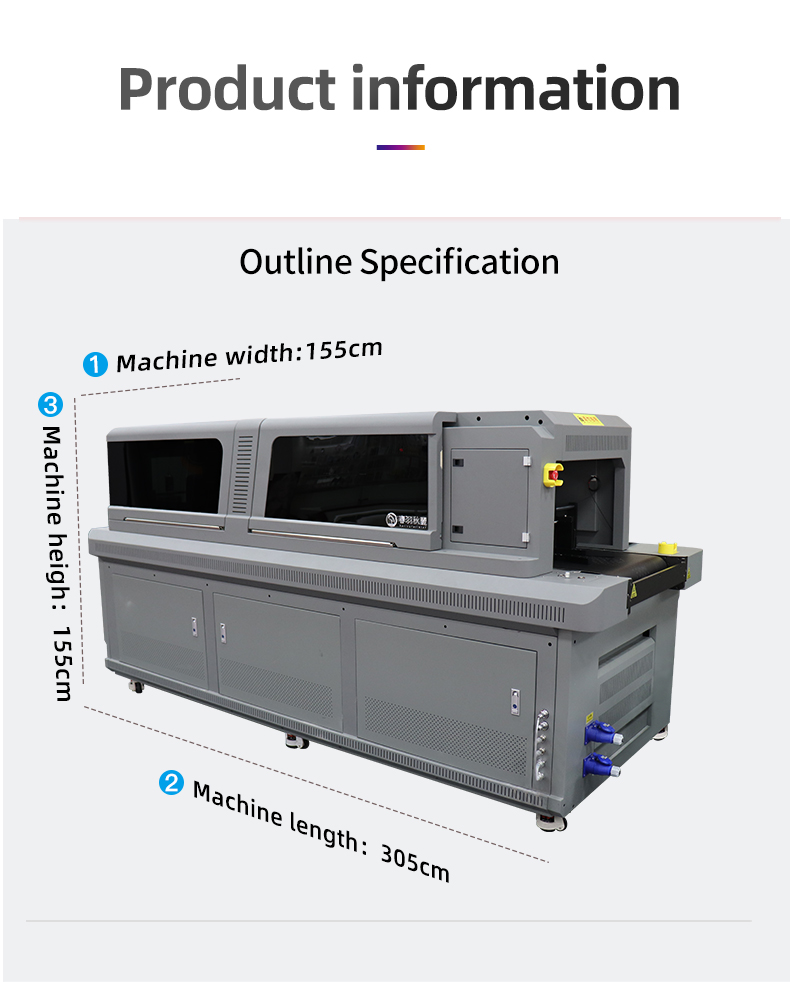

Size of the printer Length: 305cm, Width: 155cm, Height: 155cm
Net weight of the printer 800kg (N.W)
Software of printer PrintFactory
Type of the ink LED pro-environment UV Ink
Color of the ink 1. CMYK   2. CMYK+W   3. CMYK+LC LM+W   4. CMYK+W+V
Maximum power 5000W
Non-standard customization The automatic loading and unloading scheme can be customized according to customer needs.
Printer head speed 20m/min - 50m/min
Nozzle precision 600x1200 dpi (Variable point)
Picture format TIFF, JPEG, PostScript, PDF, etc.
Related Voltage 220V 50/60HZ

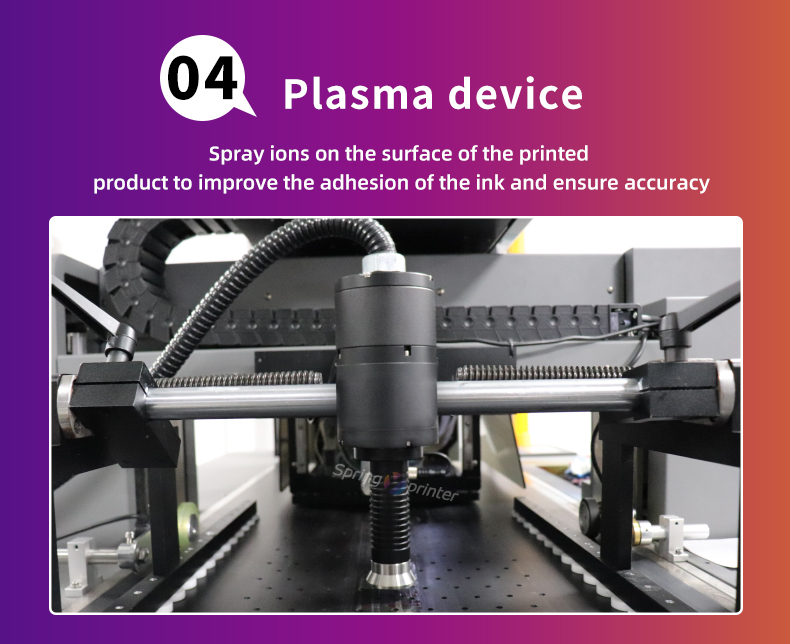

Plasma Optional installation according to material effect requirements
Effective orifice 1280
Droplet volume 7PL
The length of the print head 54MM
The color of the single print head 2

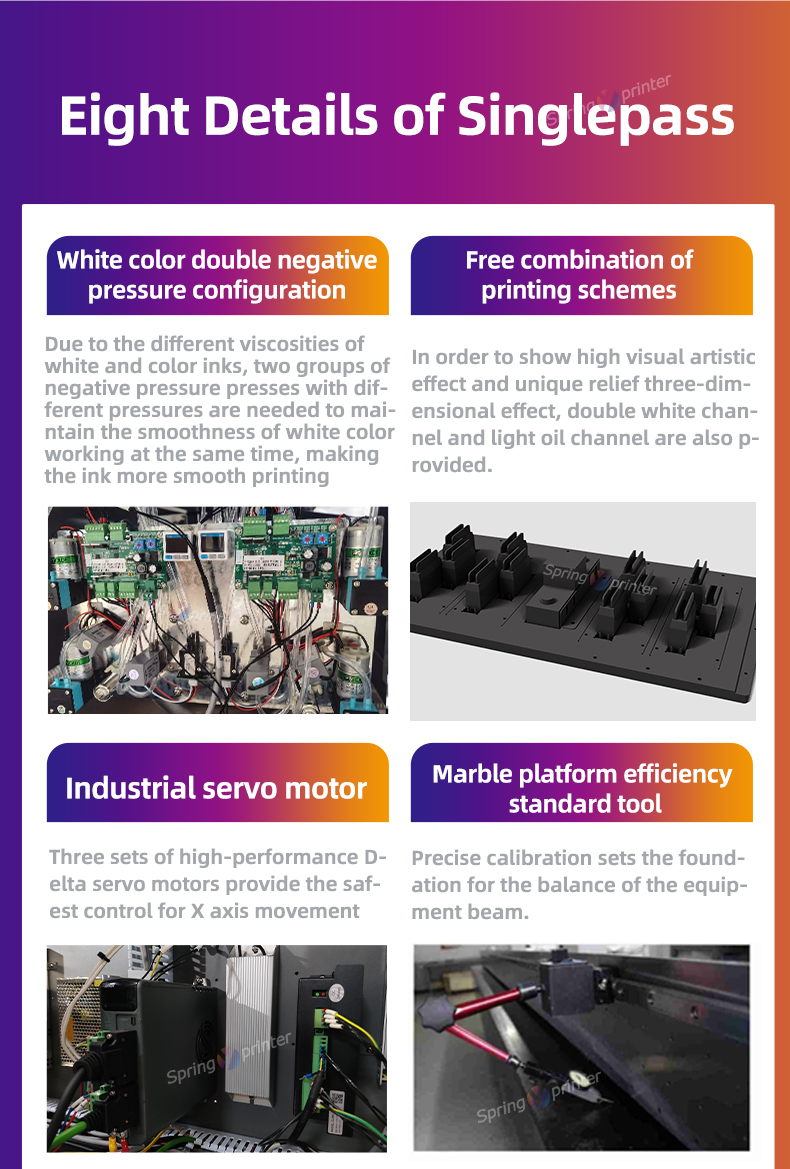

Production Process Optimization

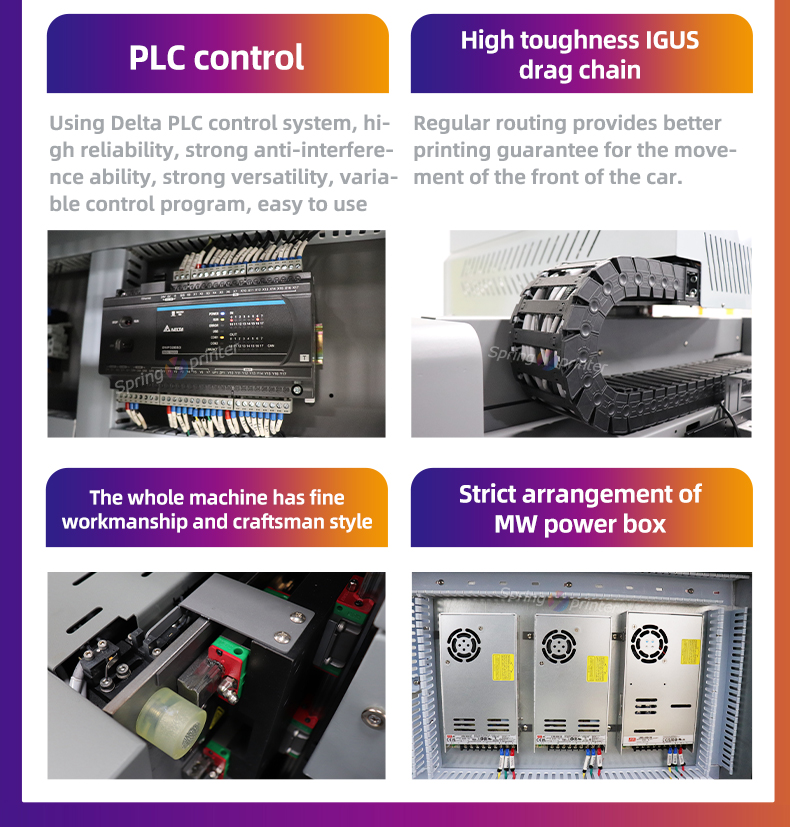

High Quality Output Showcase
Packaging Printing Examples
Industrial Standard Components
? Frequently Asked Questions

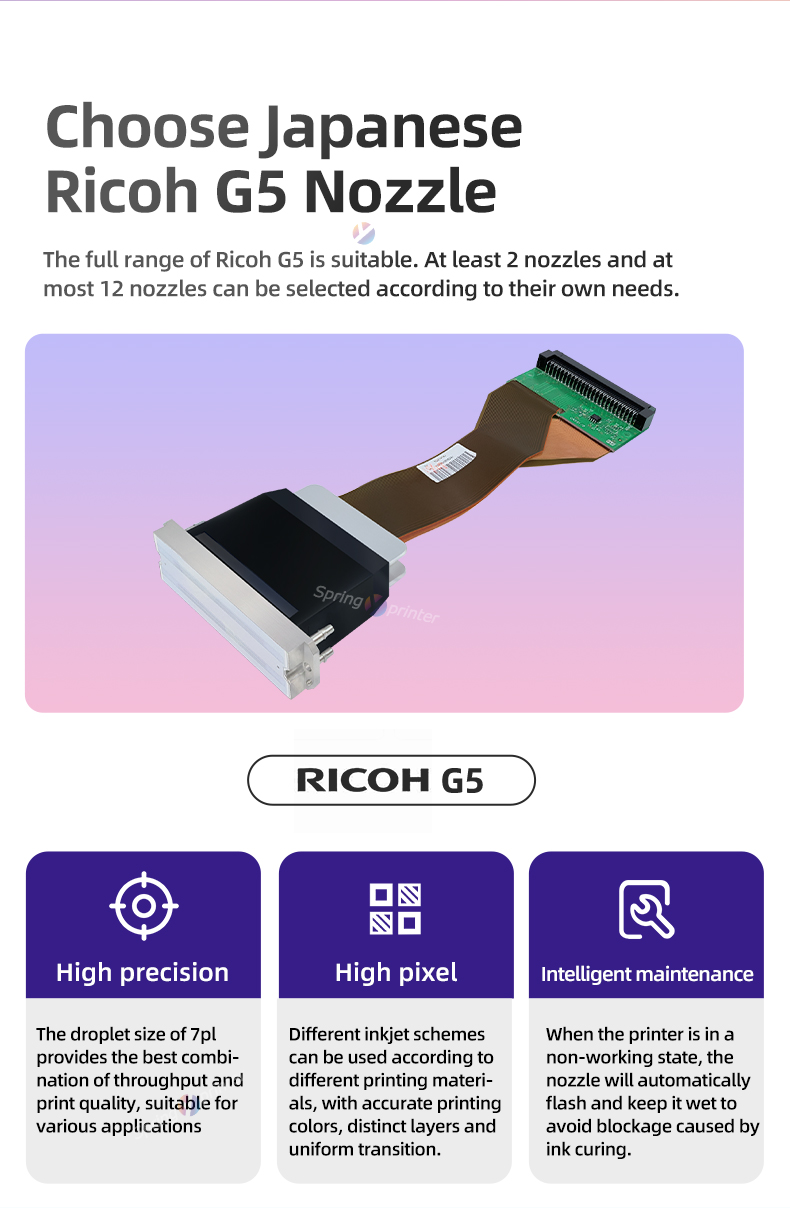

Q Which print head does this Single Pass printer use, and what is its precision?
This printer uses the RICOH G5 print head. It features 1280 effective orifices, a droplet volume of 7PL, a print head length of 54mm, and supports 2 colors per single print head. The nozzle precision reaches 600x1200 dpi with variable points for exceptional print quality.
Q What is the printing range in terms of size and speed?
The printer supports a printing size range of 0 to 50cm and a printing height range of 0 to 35cm. The print head operating speed ranges from 20m/min up to 50m/min, offering high-throughput capacity.
Q What ink options and configurations are compatible?
The system uses eco-friendly LED pro-environment UV Ink. It is compatible with multiple ink color configurations, including CMYK, CMYK+W, CMYK+LC LM+W, and CMYK+W+V.
Q Does the printer support customization options?
Yes, we offer non-standard customization. The automatic loading and unloading scheme can be custom-engineered to meet specific customer requirements and production workflows.
Q What software and file formats are required?
The printer operates using PrintFactory software. It supports widely-used graphic and document formats, including TIFF, JPEG, PostScript, and PDF.
Q What are the power requirements and installation options?
The printer operates on a voltage of 220V 50/60HZ with a maximum power output of 5000W. Additionally, a plasma processing system can be optionally installed based on the specific material adhesion and print effect requirements.
