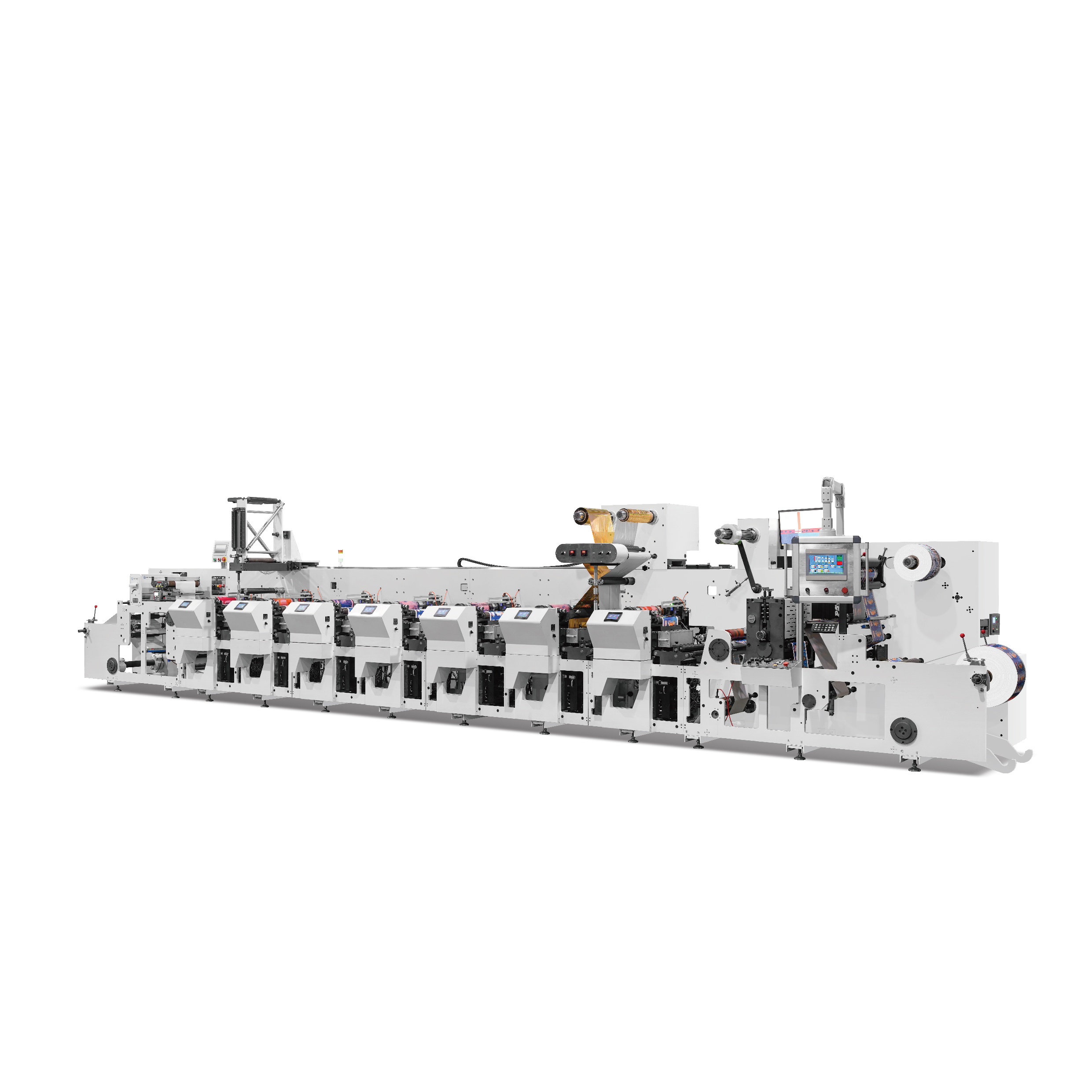

Commercial Grade 8-Color Horizontal Flexographic Printing Machine for Continuous Food and Drink Packaging

Details Specification

From 1 to 10 color printing unit

From 1 to 10 high powerful IR drying systems

Three set (3) ZXT auto tension controller

Three sets (3* depend on how many colors) printing plate rollers

Set (1* depend on how many colors) anilox roller with machine

One set (1) BST web guide system

Helical gear

Camera inspect system --- 1 set

Power configuration: For print unit --- 2KW | For unwind & rewind drag & die cut --- 3KW | Full system is OMRON

PLC & touch screen controller

Auto color register system (in forward and backward)

Remote support system

800mm unwind and rewind diameter with pneumatic lift device

Technical Parameters

Model	JZ320
Max feeding width	320mm
Printing width	360mm
Effective printing length	222~622 (70Z~196Z)
Speed	10-150m/min
Unwinding diameter	800mm
Rewinding diameter	800mm
Gear pitch	1/8 CP, Z=3.175mm
Plate thickness	1.14 or 1.7 optional
Double-sided thickness	0.38mm
Material weight	Paper 30-300 gsm, PET 12~60um, OPP 18~60um
Secondary registration precision	+/- 0.15 mm
Remote control	Equipped with remote diagnosis and remote service functions
Anilox roller	8 pcs (to be determined according to customer product specifications)
Printing plate roller	24 pcs (to be determined according to customer product specifications)
Dimensions LWH	10.831.561.52m

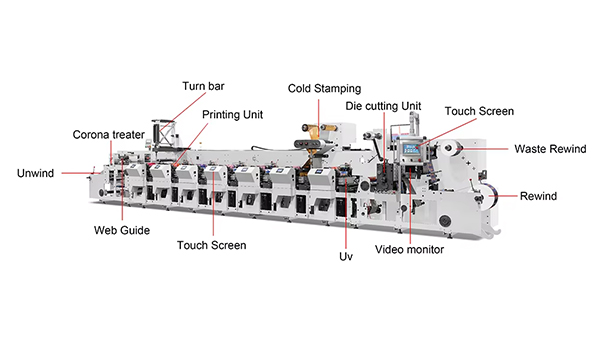

Key Unit Components

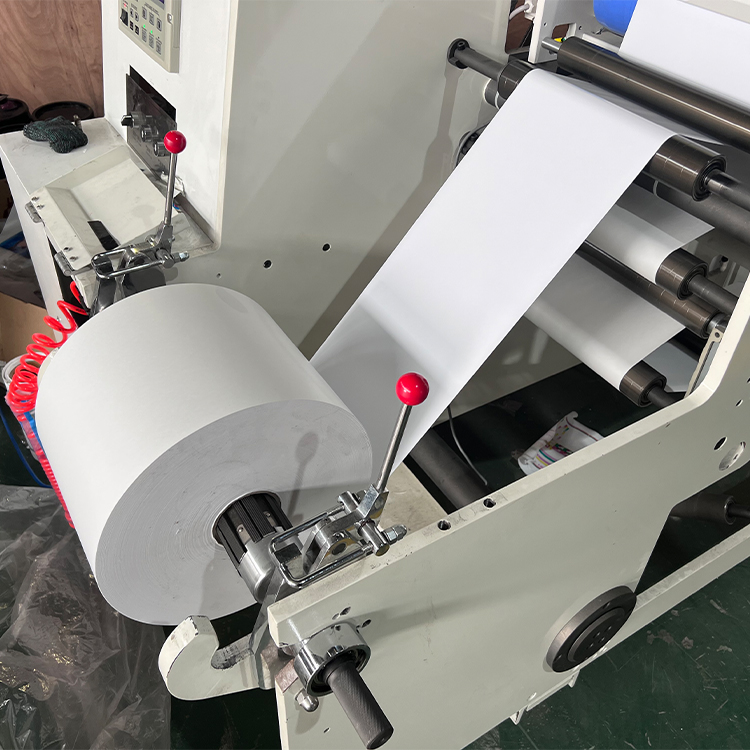

1. UNWINDER UNIT

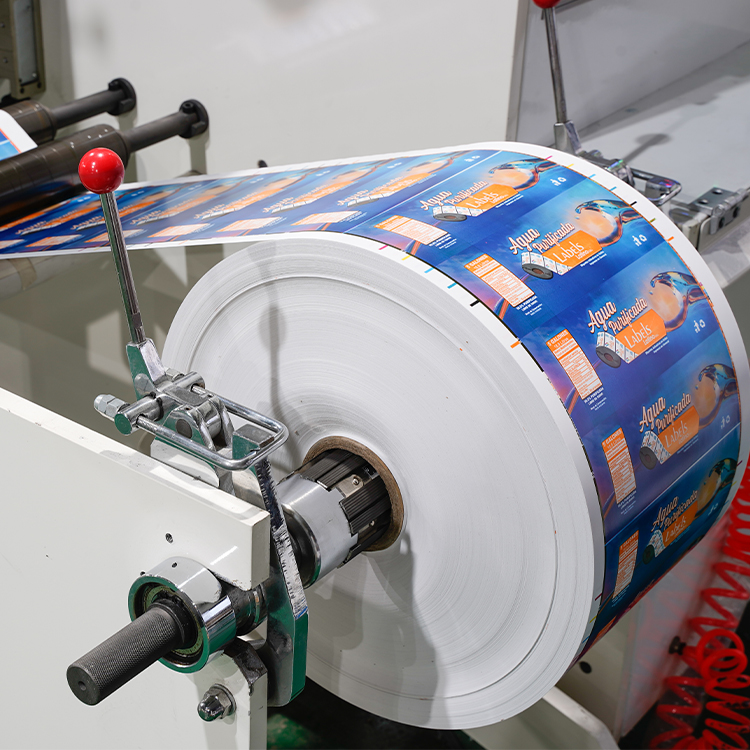

2. REWINDER UNIT

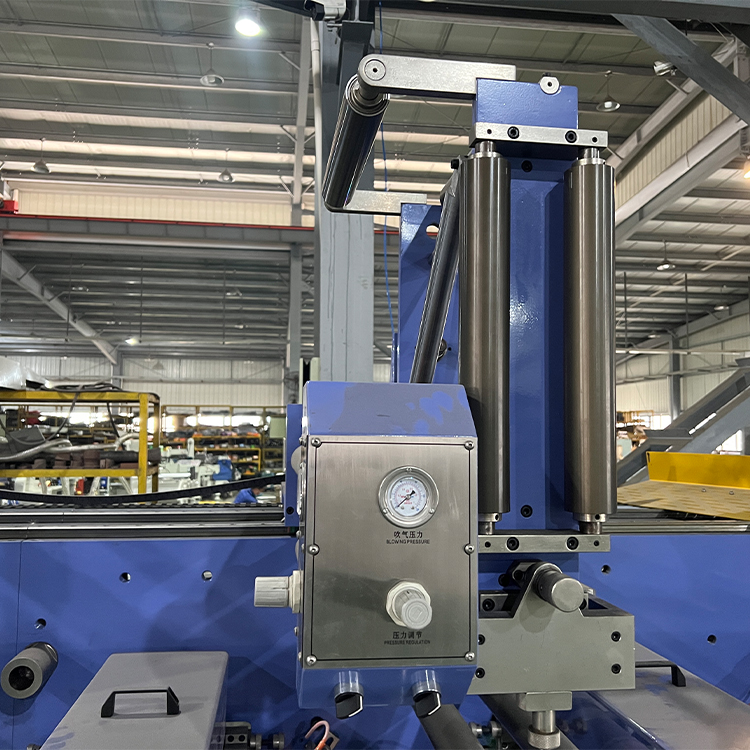

3. TURN BAR

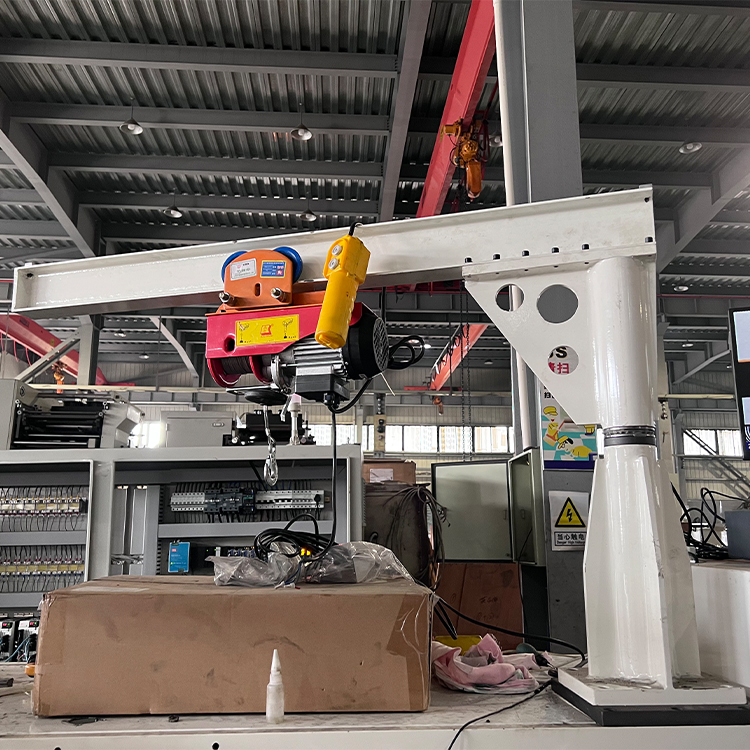

4. ELECTRIC LOAD

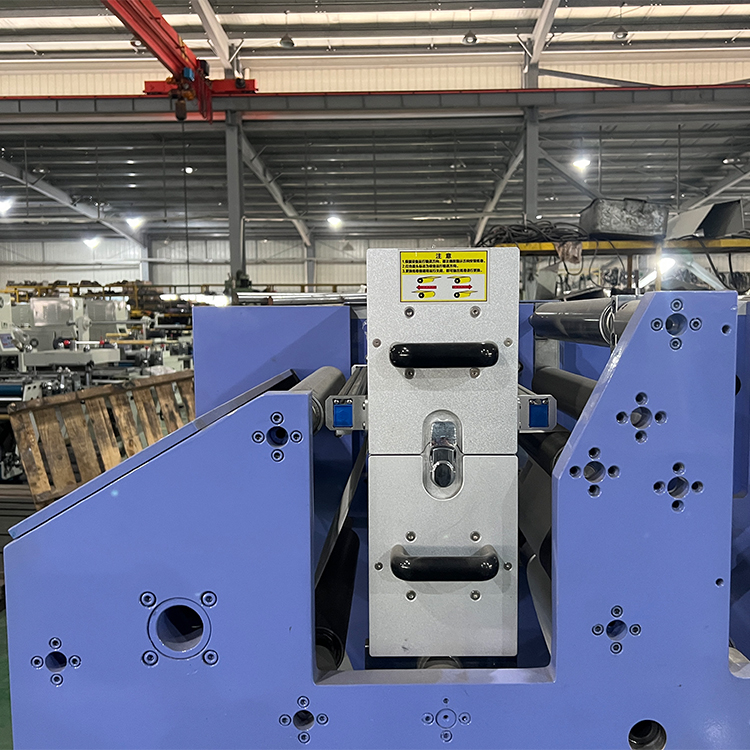

5. CORONA TREATER

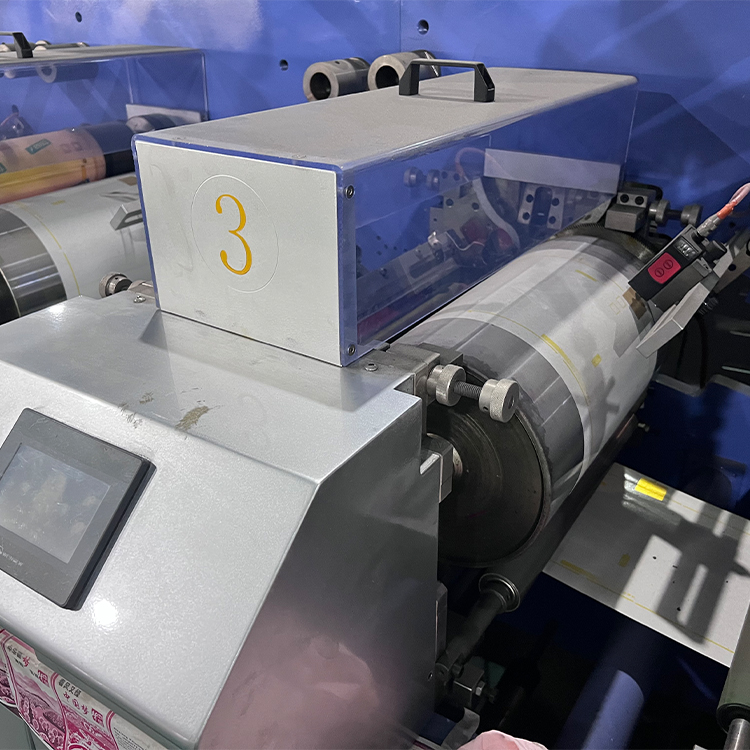

6. BOTTOM BIG ROLLER

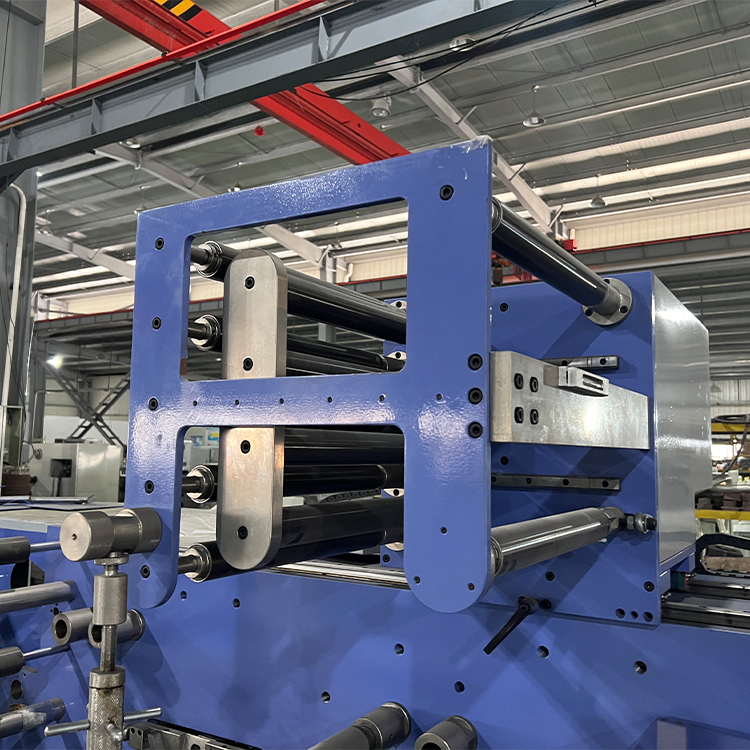

7. DELAM RELAM

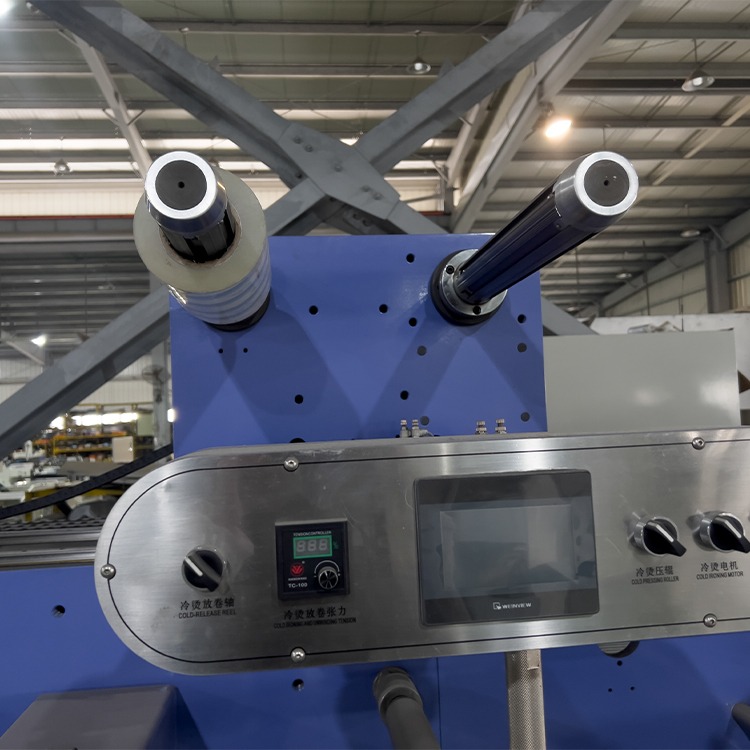

8. COLD STAMPING

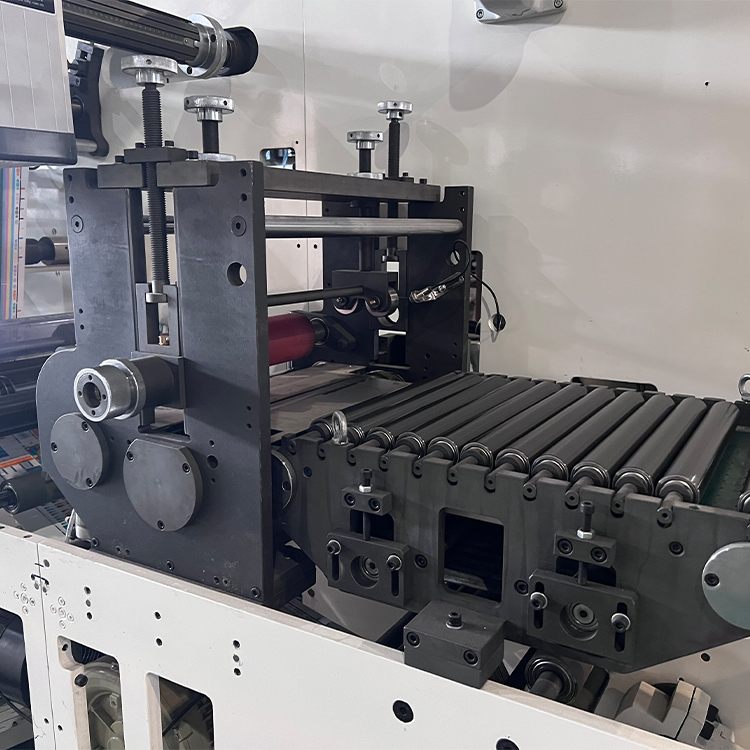

9. SHETTING UNIT

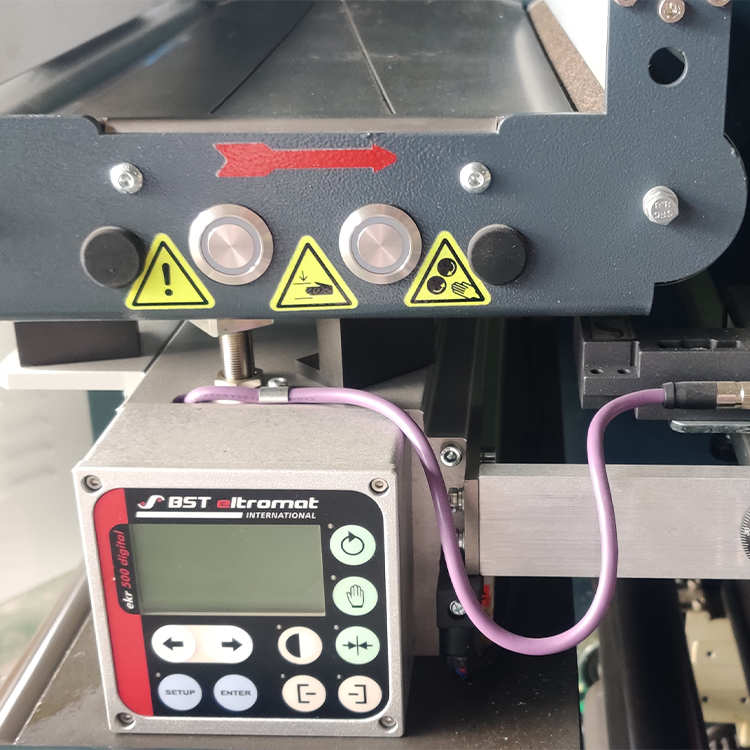

10. WEB GUIDING SYSTEM BST BRAND

Send Inquiry For More Details And Competitive Pricing

Product Showcase

Frequently Asked Questions

What types of materials can the JZ320 machine print on?

The JZ320 is highly versatile and capable of printing on a wide variety of substrates. This includes paper ranging from 30 to 300 gsm, as well as films like PET (12 to 60um) and OPP (18 to 60um).

What is the maximum printing speed of the JZ320?

The machine offers an adjustable production speed ranging from 10 to 150 meters per minute, allowing you to optimize performance depending on the material and registration requirements.

Does this machine feature remote support capabilities?

Yes, the JZ320 is fully equipped with remote diagnosis and remote service functions, enabling our engineers to provide remote technical assistance and system diagnostics.

What components make up the control and web guiding systems?

The machine features a full Omron system, including PLC and touch screen controllers. The web guiding is managed by a high-precision BST web guide system, and tension is handled via three sets of ZXT auto tension controllers.

How is the registration accuracy maintained?

The JZ320 features an auto color register system that operates in both forward and backward directions, maintaining a secondary registration precision of +/- 0.15 mm.

How many print colors and rollers are included with the base unit?

The machine supports from 1 to 10 color printing units. A standard package configuration is customized according to customer product specifications, generally including 8 anilox rollers and 24 printing plate rollers.
